Industrial devices library	3.0	GPLv2	OscadaLibs.db (SQL, GZip) > DAQ.tmplb_DevLib	en, uk, ru	Roman Savochenko Constantine (IrmIngeneer) (2018), Arsen Zakojan (2017), Ruslan Yarmoliuk (2017)	Library of templates to provide access to industrial device's data through network with simply enough protocols, like to common industrial automation devices and wide resources counters. Founded: January 2010 Sponsored by: depending on the item ... Initially created: in the old Wiki Used by: many projects on OpenSCADA

The user protocol devices library created to provide access to industrial device's data through network, like to common industrial automation devices and wide resources counters, with protocols simple enough to implement into the User Protocol module, using the presented complex protocols (ModBus, OPC_UA, HTTP) or directly on the internal like to Java language.

The template's names and their parameters are available in languages: English, Ukrainian and mRussian. Their source code wrote in the human-language independent mode with calls for the translations by the function tr() and the message's translation also allowed for English, Ukrainian and mRussian.

For connection the library to a project of the OpenSCADA station you can obtain the database file as:

supplied with a ready and proper package of the Linux distribution like to "openscada-libdb-main", "openscada-LibDB.Main";
directly taken for most actual one from the subversion repository and converted to the DB SQLite file in the way:

wget http://oscada.org/svn/trunk/OpenSCADA/data/LibsDB/OscadaLibs.sql
sqlite3 -init OscadaLibs.sql OscadaLibs.db .exit

downloaded for the one attached here.

This obtained file next you can place into the project directory of the station and create the database object for the DB module "SQLite", registering the database file in the configuration.

For the DAQ-templates in generic you need to create a representing object of the device into the Logical controller module and to select the proper template from the templates library. Next, to correct configuration, follow to specific of the template into its individual description. The conception of accessing the data by a user protocol we can imagine like to Figure 1.

Fig.1. Conception of user accessing to services and device's data.

As you can see from Figure 1, interaction with devices carried out through some transport on which their physically based. Requests to the transport you can send:

Directly by OpenSCADA system API function of the transport object string messIO( string mess, real timeOut = 0 );, if the protocol specific part is very simple and you need only the data extract.
Wrapped data request req by function int messIO( XMLNodeObj req, string prt ); and for protocol prt, if the protocol part is complex enough and already presented in OpenSCADA.
Wrapped data request specific for user by function int messIO( XMLNodeObj req, "UserProtocol" ); and the user protocol implementation, if the protocol part is complex enough and not yet present in OpenSCADA. The user implements here itself of the protocol specific part in the module UserProtocol and the data specific part in the template for the Logical Level module or directly in controller's procedure on the internal language of the module JavaLikeCalc.

This latter method is currently developed to the possibility of forming a protocol code part directly in the same code of the template as a separate built-in function with call the requesting function of the first method, if there is no need for reuse, or even if such a need exists and it makes sense to create a complex template that can combine the role of the output protocol, through its connection to the user protocol module. And it will be completely stored in a single template library.

Working directly with the output transport of the string messIO(string mess, real timeOut = 0); function does not imply blocking the output transport outside this function call and, therefore, for complex protocols with response packets more than in one packet, which requires the "waiting" process, can not be used a shared transport, at which can be sent packets of different protocols or even one, but for different tasks (controller objects). Therefore, if you need to use shared transport, place the poll parameters in one controller object (task), or use the user protocol module to which this remark is irrelevant, since it performs such blocking at the time of the call of the processing procedure, as well as other modular protocols of OpenSCADA. To place a protocol implementation here you need to do and to follow for the shown demands:

be the copyright holder or the author of the code and distribute it under any free license, GPL preferred;
prepare and store into a separated DB file of SQLite, or as a text file, for: the parameters (IO) description, the procedure's code wrote and formed in some system way;
write a short description and instruction for connect a device by the protocol in way like to the other ones here;
write a direct request to the forum topic "OpenSCADA development" for placing the protocol here, include a proving of its ability to work from any OpenSCADA developer or a short demonstration video.

1 Common protocols

1.1 ModBus scanner (ModBusScan)	1.0	GPLv2	*	en, uk, ru	Roman Savochenko

ModBus scanner for Coils (1), Input Coils (2), Registers (3), Input Registers (4); in the range [0...65535]. The template useful to examine unknown ModBus devices, scanning their Coils' and Registers' map for detecting the available data addresses. The scanning performs per one item, whether it is a coil or a register, to prevent the data unavailability for strict data accessing devices. The protocol ModBus itself implemented by the OpenSCADA module DAQ.ModBus, together which the template designed to use.

Total complexity: 0.2 HD^[!]
Sponsored by, for whole complexity: SVItoVYR Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
lim	Limit time, seconds	Integer	Input	Not attribute	Constant	10
type	Type	Integer numbers selection	Input	Full access	Variable	2 0;1;2;3 Coils (1);Input Coils (2);Registers (3);Input Registers (4)
begin	Begin (0...65535)	Integer	Output	Full access	Variable
end	End (0...65536)	Integer	Output	Full access	Variable
res	Result	Text	Output	Read only	Variable
this	The object	Object	Input	Not attribute	Variable

Configuring and using

1. Create a source controller object, or use a suitable one, into the module "ModBus".

2. Create a source parameter object into the previous source controller object, set its Identifier like to "ModBusScan", select its type to "Logical" and select this template for it — enable the parameter.

3. Into the tab "Template configuration" of the logical parameter object you need to set:

Limit time, seconds — time of limiting for one cycle execution, the default value is a normal one.

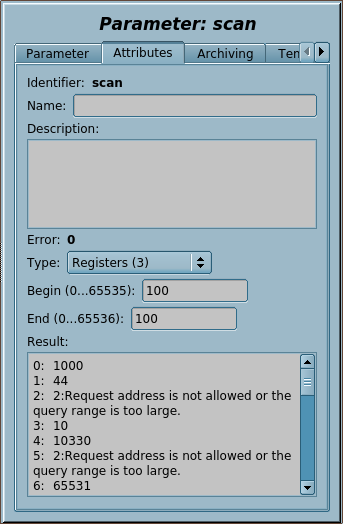

4. RESULT: Selecting type of the data and setting the "Begin" and "End" attributes of the scanning range you will get the scanning result into the attribute "Result", which will be appended in the scanning process.

1.2 ModBus base (mbBase)	1.3	GPLv2	*	en	Roman Savochenko

ModBus base template of the protocol implementing on the Logical Level. Designed mostly to use in the base of creation specific ModBus-based protocols for the standard-part registers' access (functions 3, 4 for reading and function 16 for writing) and appending the new protocol specific part. The template was designed to work both under control of the controller objects of the module ModBus and LogicLev and can be managed from the template of the initiative connections processing for assigned output transports.

Total complexity: 0.5 HD^[!]
Sponsored by, for whole complexity: Elyor Turaboev, BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.mbbase
addr	Device address, [0...247]	Integer	Input	Not attribute	Constant	1
mbType	ASCII\|TCP]	String	Input	Not attribute	Constant	RTU
maxBlkSz	ModBus maximum block size, [10...200]	Integer	Input	Not attribute	Constant	200
fragMerge	ModBus blocks merging	Boolean	Input	Not attribute	Constant	1
items	Items set Rows in the form "[u\|i\|u2\|i2\|u4\|i4\|r\|s]:{addr}:{w\|r\|~\|i}:{id}[:{nm}]".	Text	Input	Full access	Variable	#<SnthHgl font="monospace"><rule expr="^#[^\n]" color="gray" font_italic="1"/><rule expr=":[rw~i]:" color="red"/><rule expr=":(0[xX][0-9a-fA-F]\|[0-9]),?(0[xX][0-9a-fA-F]\|[0-9]),?(0[xX][0-9a-fA-F]\|[0-9]),?(0[xX][0-9a-fA-F]\|[0-9])" color="blue"/><rule expr="^(u\|i\|u2\|i2\|u4\|i4\|r\|s)" color="darkorange"/><rule expr="\\:" color="blue"/></SnthHgl>
tr	Output transport	Object	Input	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Serial" or "Sockets", and set its Identifier like to "mbbase", one for each the devices' used serial bus.

2. Set proper address and timeouts of the device.

3. Create and start a logical controller object or a ModBus controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for the devices on one bus — enable the parameter.

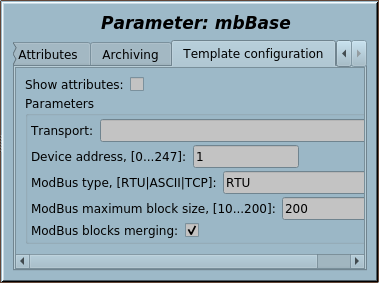

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the automatically created transport with its parameters after ":", accordingly to the function SYS.Transport.outAt() address format. Leave the field empty for the ModBus controller object. Tracing for the address changing is supported.
Device address (for the logical controller object) — to logical address of the device on the bus under the transport in step 1. Tracing for the address changing is supported.
ModBus type (for the logical controller object) — to the ModBus protocol type/variant from the list: RTU, ASCII, TCP.
ModBus maximum block size (for the logical controller object) — to the ModBus protocol package data maximum size in the range [10...200].
ModBus blocks merging (for the logical controller object) — for allowance of merging the ModBus protocol fragmented blocks of the registers.

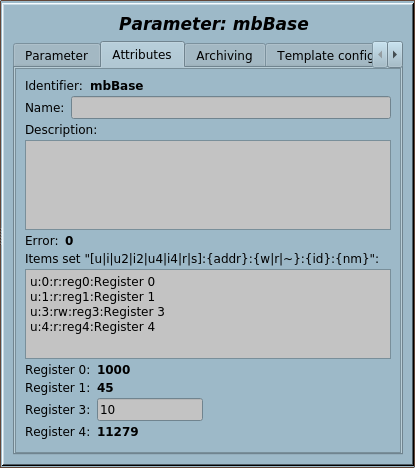

6. RESULT: The logical parameter object will: dynamically create needed attributes accordingly to the attribute "Items set" value and perform interaction and placing of gathered data to the parameter attributes. Also you are able to change for writable attributes.

1.3 DCON Protocol + Input AI (DCON_Prt)	1.0	GPLv2	* => UserProtocol	en
1.4 DCON Protocol + Input AO (DCON_Prt_AO)	1.0	GPLv2	* => UserProtocol	en
1.5 DCON Protocol + Input DI (DCON_Prt_DI)	1.0	GPLv2	* => UserProtocol	en
1.6 DCON Protocol + Input DO (DCON_Prt_DO)	1.0	GPLv2	* => UserProtocol	en	Roman Savochenko

Input and output parts of the protocol DCON implementation with the input part designed for typical AI, DI, AO, DO modules at up to 20, 32, 8, 32 channels. The protocol DCON client part also implemented by the OpenSCADA module DAQ.DCON.

INPUT USER PROTOCOL'S PART — full-featured implementation of typical DAQ modules suitable to multiple using on one bus and multiple using of the templates.

Configuring and using

1. Create of needed user protocol objects based on the templates, with ID like to DCON_[AI,AO,DI,DO].

2. Configure the input part of the protocol objects for their addresses, CRC and establish them links to real data.

3. Create one or several input transports of the type "Serial" mostly and set its to any ID.

4. Set proper address and the timeouts to the Serial devices.

5. Select for one or several user protocols created in the step 1.

6. RESULT: all requests to the input transport(s) will be processed by the input part of the user protocol objects.

OUTPUT USER PROTOCOL'S XML REQUEST STRUCTURE — <ReqSymb addr="{toAddr}" err="{err}" CRC="{CRC}">{req}</ReqSymb>

ReqSymb — symbol of the request type into the tag name, like to: '#', '@', etc;

toAddr — remote host address [0...240];

CRC — sign [0,1] of using CRC;

req — data of the request and response;

err — sets for the request result.

Configuring and using

1. Create or use allowed user protocol objects based on the templates, with ID like to "DCON".

2. Create an output transport of the type "Serial" and set its ID like to "DCON", one transport suitable for more receivers.

3. Set proper address and timeouts for the Serial device.

4. Place some requesting commands directly into allowed or a new internal OpenSCADA procedure like to:

req = SYS.XMLNode("#"); req.setAttr("ProtIt","DCON").setAttr("addr","5");
SYS.Transport.Serial.out_DCON.messIO(req, "UserProtocol");
data = req.attr("err").toInt() ? "" : req.text();

5. RESULT: Into the variable data you will get the request's data part if no errors occur. The data is values of the analog inputs.

1.7 Distributed Network Protocol 3 (DNP3)	0.8	GPLv2	*	en, uk, ru	Roman Savochenko

Distributed Network Protocol 3 (DNP3) is a set of communications protocols used between components in process automation systems. Its main use is in utilities such as electric and water companies. Usage in other industries is not common. It was developed for communications between various types of data acquisition and control equipment. Competing standards include the older Modbus protocol and the newer IEC 61850 protocol and IEC 61870.

Total complexity: 2.0 HD^[!]
Sponsored by, for whole complexity: Hadi Ramezani and Hossein Malakooti

Details
The template implements currently for the client, which uses the followed functions: Confirm (0x00), Read (0x01), Write (0x02), Enable (0x14) and Disable (0x15) Spontaneous Messages.

And which implements and tested for the followed point-oriented objects (data types):

1.[2] — Binary Input [with status]
2.[1] — Binary Input Changed [w/o time]
3.[2] — Double-bit Input [with status]
4.[1] — Double-bit Input Changed [w/o time]
10.[2] — Binary Output (reading back and used to write also) [with status]
20,21.[1] — Binary Counter (Typical,Frozen) [32-Bit]
22,23.[1] — Binary Counter Changed (Typical,Frozen) [32-Bit w/o time]
30.[1,5] — Analog Input [32-bit integer value with flag, 32-bit floating point value with flag]
32.[7] — Analog Input Changed [32-bit floating point value with flag and event time]
40.[1] — Analog Output (reading back and used to write also) [32-bit integer value with flag]
50 — Time and Date (just passed and not read) [indexed absolute time and long interval]
60.[1,2,3,4] — Classes [0,1,2,3]
80.[1] — Device [Restart 7=Off(0x01)]
110.[1] — Octet String (just passed and not read) [Sized by variation]

Considering the purpose and the application area, the protocol does not provide the direct determination of the requested data and the device, that implements it, provides all available ones upon request for the Class 0 data, after which only changes are requested for the Classes 1, 2, 3.

All received and controlled data is accumulated in an object of the attribute "items" for further control as an object in a table of the widget "Main.objProps", according to the complex object definition.

For standard control over parameter attributes, including archiving, it is possible to define the necessary data to create a separate representative attribute for them, which is described in the attribute "itemsSet", where they can be defined individually, with a semantic identifier and name, or in a range named by a template. The data in the attribute "itemsSet" is defined by records in the format ai|ao|cnt|di|do:{pnt}[-{endPnt}][:a[:{NameBase}]], where:

ai|ao|cnt|di|do — data type, where:
- "ai" — analog inputs, transmitted by the functions 30 and 32;
- "ao" — analog outputs, transmitted by the function 40;
- "cnt" — counters, transmitted by the functions 20, 21, 22, 23; so Typical and Frozen counters is in one space;
- "di" — discrete inputs, transmitted by the functions 1, 2, 3, 4; so Binary Input and Double-bit Input is in one space;
- "do" — discrete outputs, transmitted by the function 10.
{pnt} — point number of the range begin;
{endPnt} — the range end (the last point number);
a — sign of creating the representative attribute for the parameter or the parameters group;
{NameBase} — naming base of the attributes.

Examples of the parameters definition, rows of the attribute "itemsSet":

ai:0-9:a — analog inputs in the points range [0...9] with forming the attributes;
ao:0-9:a — analog outputs in the points range [0...9] with forming the attributes;
di:0-9:a — discrete inputs in the points range [0...9] with forming the attributes;
do:0-9:a — discrete outputs in the points range [0...9] with forming the attributes;
cnt:0-9:a — counters in the points range [0...9] with forming the attributes.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.out_DNP3
dest	Destination [0...65520]	Integer	Input	Not attribute	Constant	10
src	Source [0...65520]	Integer	Input	Not attribute	Constant	1
tmRetr	Retry connection time, seconds	Real	Input	Not attribute	Constant	10
tmPoolEv	Poll events time, seconds	Real	Input	Not attribute	Constant	1
tmPoolAll	Poll all time, seconds	Real	Input	Not attribute	Constant	60
itemsSet	ao\|cnt\|di\|do:{pnt}[-{endPnt}][:a[:{NameBase}]]"	Text	Input	Full access	Variable
items	All items	Object	Output	Full access	Variable
tr	Output transport	Object	Input	Not attribute	Variable
ctx	IO context	Object	Input	Not attribute	Variable
oAVals	Output values	Object	Output	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Sockets", set its Identifier like to "DNP3", one for each the device-PLC.

2. Set proper address with port 20000 and timeouts of the Sockets device-PLC.

3. Create and start a logical controller object or use any present one with need scheduling properties. The interaction period preferred to be about 0.1 second.

4. Create a logical parameter object and select this template for that, one for each the device-PLC — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Destination — remote station address in the integer range [0...65520].
Source — the same station address (source) in the integer range [0...65520].
Retry connection time — retry connection time in seconds, at the connection missing and no response detection.
Poll events time — time in seconds of the events periodical polling (Class 1).
Poll all time — time in seconds of the complete data requesting (Class 0,1,2,3).

6. RESULT: The logical parameter object will perform interaction and placing of the gathered data to the object "items", creation/placing and checking for commands of the proper attributes, created by the "itemsSet" instruction.

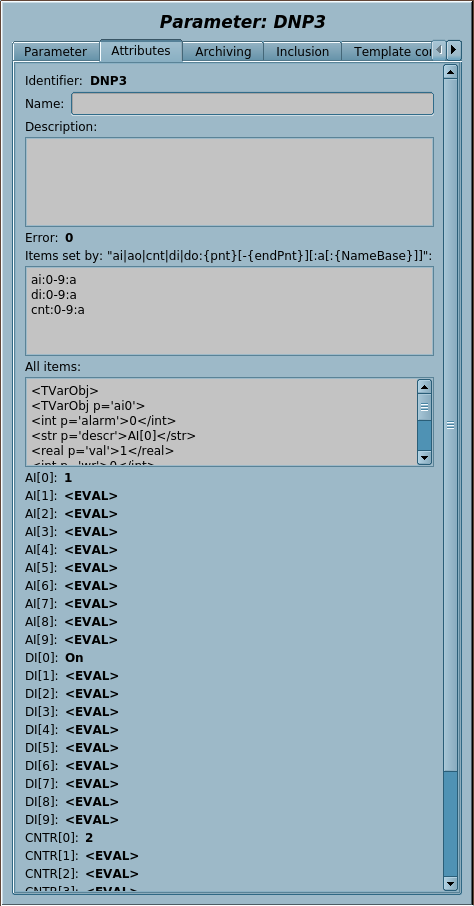

7. In the process of the working, through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Items set by — for controlled items naming and definition as attributes and accessible for write.
All items, {Item attributes} — direct writing for the writable items.

1.8 IEC-60870 (IEC60870)	1.4	GPLv2	*	en, uk, ru	Roman Savochenko

IEC 60870 part 5 is one from the IEC 60870 set of standards which defines systems used for telecontrol (supervisory control and data acquisition) in electrical engineering and power system automation applications. Part 5 provides a communication profile for sending basic telecontrol messages between two systems, which uses permanent directly connected data circuits between the systems.

State of the protocol implementing:
- CLIENT of the specification PART 104 (Ethernet transport);
- Services: STARTDT, STOPDT, TESTFR, Ack, C_IC_NA_1 (100), C_CI_NA_1 (101), C_SC_NA_1 (45), M_SP_NA_1 (1), M_SP_TA_1 (2), M_DP_NA_1 (3), M_DP_TA_1 (4), M_ME_NB_1 (11), M_ME_NC_1 (13), M_ME_TF_1 (36), C_CS_NA_1 (103);
- For information ones, the sequential (SQ) mode enabling and disabling are supported.
Total complexity: 3.8 HD^[!]
Sponsored by, for initial implementation on 3.0 HD^[!]: Ustijancev Michael
Sponsored by, for extending on 0.8 HD^[!]: SVItoVYR Ltd
Implementing task

Details
Considering the purpose and the application area, the protocol does not provide the direct determination of the requested data and the device, that implements it, provides all available ones upon request by the C_IC_NA_1 command, after which only changes are sent.

All received and controlled data is accumulated in an object of the attribute "items" for further control as an object in a table of the widget "Main.objProps", according to the complex object definition.

For standard control over parameter attributes, including archiving, it is possible to define the necessary data to create a separate representative attribute for them, which is described in the attribute "itemsSet", where they can be defined individually, with a semantic identifier and name, or in a range named by a template. The data in the attribute "itemsSet" is defined by records in the format ai|di|do:{IOA}[-{EndIOA}][:a[:{NameBase}]], where:

ai|di|do — data type, where:
- "ai" — analog inputs, transmitted by the message M_ME_NB_1, M_ME_NC_1, M_ME_TF_1 and requested by C_IC_NA_1;
- "di" — discrete inputs, transmitted by the message M_SP_NA_1, M_SP_TA_1, M_DP_NA_1, M_DP_TA_1 and requested by C_IC_NA_1;
- "do" — discrete outputs, is transmitted by C_SC_NA_1.
{IOA} — parameter address of the range begin;
{EndIOA} — the range end (the last item address);
a — sign of creating the representative attribute for the parameter or the parameters group;
{NameBase} — naming base of the attributes.

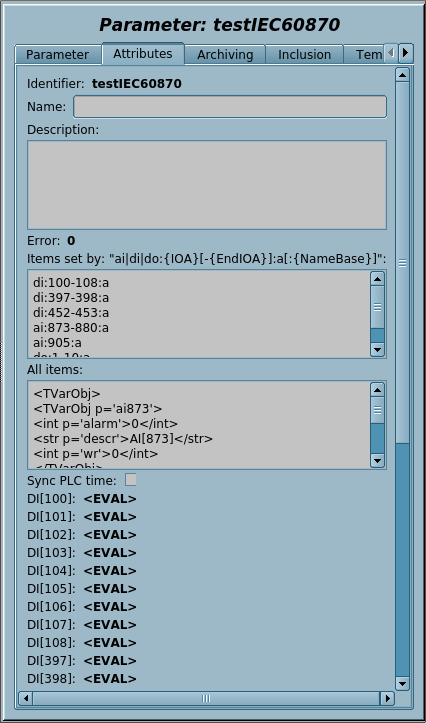

Examples of the parameters definition, rows of the attribute "itemsSet":

di:100-108:a — discrete inputs in the address range [100...108] with forming the attributes;
ai:873-880:a — analog inputs in the address range [873...880] with forming the attributes;
do:1-10:a — discrete outputs in the address range [1...10] with forming the attributes.

The module provides integrated support for time synchronisation of PLC by sending the C_CS_NA_1 service command.

In the template for the first time used the not requesting mode of an output transport and the attributes creation in free while performing.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.out_IEC60870
addr	Address, {addr}.{OA}	String	Input	Not attribute	Constant	0.5
tmRetr	Retry connection time, seconds	Real	Input	Not attribute	Constant	10
tmPoolAll	Poll all time, seconds	Real	Input	Not attribute	Constant	60
t1	Acknowledge lack activity timeout, seconds	Real	Input	Not attribute	Constant	1.5
t2	Acknowledge timeout, seconds	Real	Input	Not attribute	Constant	1
t3	Test timeout, seconds	Real	Input	Not attribute	Constant	2
k	Maximum unconfirmed	Integer	Input	Not attribute	Constant	12
w	Maximum no ack	Integer	Input	Not attribute	Constant	8
itemsSet	Items set by: "ai\|di\|do:{IOA}[-{EndIOA}][:a[:{NameBase}]]"	Text	Input	Full access	Variable
items	All items	Object	Output	Full access	Variable
syncTimePLC	Sync PLC time	Boolean	Input	Full access	Variable
oAVals	Output values	Object	Input	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_frq	Frequency of calculation of the function (Hz)	Real	Input	Not attribute	Variable	1000
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Sockets", set its Identifier like to "IEC60870", one for each the device-PLC.

2. Set proper address with port 2404 and timeouts of the Sockets device-PLC.

3. Create and start a logical controller object or use any present one with need scheduling properties. For interaction by IEC-60870-104 you need the execution period not greater than 0.1 second!

4. Create a logical parameter object and select this template for that, one for each the device-PLC — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

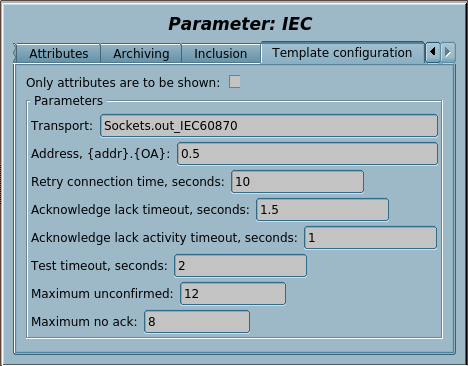

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Address — remote station and object address in the format "{addr}.{OA}", for physical systems without a gateway is not particularly important.
Retry connection time — retry connection time in seconds, at the connection missing.
Poll all time — time in seconds of the complete data requesting, sending C_IC_NA_1.
Acknowledge lack activity timeout, in seconds.
Acknowledge timeout, in seconds.
Test timeout, in seconds.
Maximum unconfirmed — not used into the client since it is not generate such flows.
Maximum no ack — maximum input packages after what the client will send "Ack".

6. RESULT: The logical parameter object will perform interaction and placing of the gathered data to the object "items", creation/placing and checking for commands of the proper attributes, created by the "itemsSet" instruction.

7. In the process of the working, through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Items set by — for controlled items naming and definition as attributes and accessible for write.
All items, {Item attributes} — direct writing for the writable items.

1.9 IEC-62056 (IEC62056)	1.1	GPLv2	*	en, uk, ru	Roman Savochenko

IEC 62056 is a set of standards for electricity metering data exchange. The IEC 62056 standards are the international standard versions of the DLMS/COSEM specification.

State of the protocol implementing:
- CLIENT of the specification PART 46;
- reading of the directly specified OBISes.
Total complexity: 3.3 HD^[!]
Sponsored by, for whole complexity: SVItoVYR Ltd

Details
DLMS or Device Language Message Specification (originally Distribution Line Message Specification), is the suite of standards developed and maintained by the DLMS User Association (DLMS UA) and has been adopted by the IEC TC13 WG14 into the IEC 62056 series of standards.

COSEM or Companion Specification for Energy Metering, includes a set of specifications that defines the transport and application layers of the DLMS protocol. The DLMS User Association defines the protocols into a set of four specification documents namely Green Book, Yellow Book, Blue Book and White Book. The Blue Book describes the COSEM meter object model and the OBIS object identification system, the Green Book describes the architecture and protocols, the Yellow Book treats all the questions concerning conformance testing, the White Book contains the glossary of terms.

In the template implementation were used the follow standards:

"IEC 62056-46:2007" — Data link layer using HDLC protocol.
"IEC 13239:2002" — Telecommunications and information exchange between systems — High-level data link control (HDLC) procedures.
"IEC 62056-53:2006" — COSEM application layer.
"IEC 62056-61:2006" — Object identification system (OBIS).
"IEC 62056-62:2006" — Interface classes.

This protocol doesn't specify a way of requesting-acquisition all available variables of the device, like to the protocols IEC-60870 and DNP3, so we need to point their directly and obtain their before that anywhere for the concrete device.

The template was initially implemented to work with the electricity counter Actaris SL7000, for which there were obtained follow useful requesting OBIS codes:

Single items

"1-0.0.96.1.255.255-2" — serial number;
"1-0.0.142.1.1.255-2" — software version;
"8-0.0.1.0.0.255-2" — counter time;
"3-1.1.14.7.0.255-0" — Frequency Instantaneous (mains frequency);

Multiple-group items

"7-255.255.98.133.2.255-2" — Total Energy Registers;
"7-1.1.98.128.1.255-2" — phase angle;
"7-1.1.98.128.2.255-2" — neutral;
"7-1.1.98.128.3.255-2" — Power;
"7-1.1.98.128.4.255-2" — RMS;
"7-1.1.98.128.5.255-2" — Power factor;
"7-1.1.98.128.6.255-2" — phase offset.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.out_IEC62056
dest	Destination "{UHDLC}[:{LHDLC}]", [0...16383]	String	Input	Not attribute	Constant	17:6168
src	Source [0...127]	Integer	Input	Not attribute	Constant	1
pass	Password the device	String	Input	Not attribute	Constant	ABCDEFGH
tmRetr	Retry connection time, seconds	Real	Input	Not attribute	Constant	10
tmPollAll	Poll all time, seconds	Real	Input	Not attribute	Constant	10
itemsSet	Items set by: "{ClassId}-{OBIS}-{attr}"	Text	Input	Full access	Variable
items	All items	Object	Output	Full access	Variable
tr	Output transport	Object	Input	Not attribute	Variable
ctx	IO context	Object	Input	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Serial" directly or by the "Sockets" gate, and set its Identifier like to "IEC62056", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties. The interaction period preferred to be about 0.1 second.

4. Create a logical parameter object and select the template for that, one for each the device-PLC — enable the parameter.

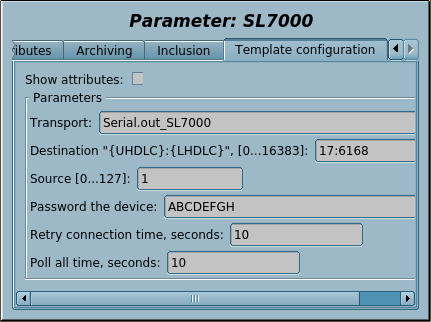

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Destination "{UHDLC}[:{LHDLC}]" — remote station address in the two digits format each of which in the range [0...16383], this address can be pointed as one digit of the range [0...127].
Source — the same station address (source) in the integer range [0...127].
Password the device — the device access password.
Retry connection time — retry connection time in seconds, at the connection missing and no response detection.
Poll all time — time in seconds of the complete data requesting, pointed in the "itemsSet".

6. RESULT: The logical parameter object will perform interaction and placing of the gathered data to the object "items", creation/placing the gathered data to the proper value attributes.

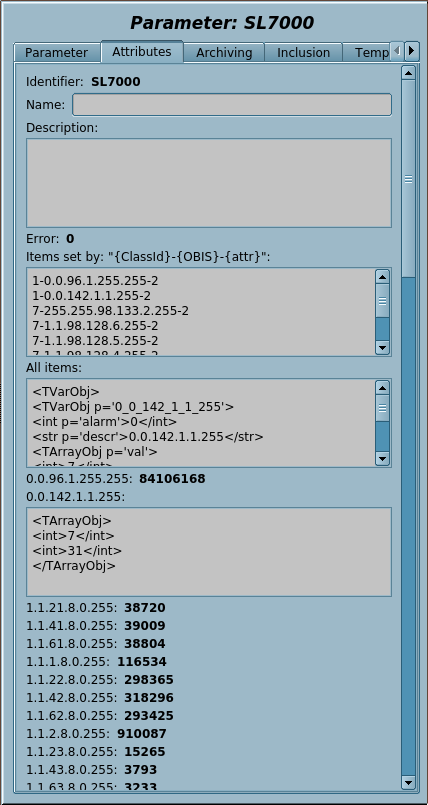

7. In the process of the working, through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Items set by — for appending the device's OBIS to their reading.

1.10 OWEN (OWEN)	0.8	GPLv2	*	en	Roman Savochenko, Constantine (IrmIngeneer)

OWEN data sources implementation in the OWEN protocol. Implemented wholly in the template for the protocol requesting and for dynamic data model of the OWEN data sources' data with support of the writing and original names of the parameters.

State of the protocol implementing: Client of the protocol for reading and writing the specified PLC properties.
Total complexity: 0.5 HD^[!]
Actual issues: The undocumented behaviour:
- МВ110-8А responds error 0x31 for reading "in-t": >1003023331932DCB43 <1010932D4791;
- and error 0x34 for it writing: >1003023334932D2A42 <1001932D0BEDBC.

Details
The field "addr" of the items can be wrote positive, for the 8 bit address [0...255], and negative, for the 11 bit address[-2047...0].

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.out_owen
items	Items set "{addr}:{func}:{f\|i\|u\|s}:{r\|w}[:{id}[:{nm}]]"	Text	Input	Full access	Variable
this	Object	Object	Input	Not attribute	Variable

Configuring and using

1. Create an output transport of the type "Serial" directly or by the "Sockets" gate, and set its Identifier like to "owen", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for the devices on one bus — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.

6. RESULT: The logical parameter object will: dynamically create needed attributes accordingly to the attribute "Items set" value and perform interaction and placing of gathered data to the parameter attributes. Also you are able to change for writable attributes. Into the "Error" attribute, additionally to the same errors, you will get for statuses of the read and wrote values.

2 Industrial automation devices

2.1 Elemer TM510x (TM510x)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

Multi-channels thermometer Elemer TM5102 and TM5103 of the firm Elemer.

Sponsored by: DIYA Ltd

Output user protocol's XML request structure
<mess addr="1" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote station address (1...254);

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	tm510x
addr	Device address (1...254)	Integer	Input	Not attribute	Constant	1
devTp	Device type	Integer	Input	Read only	Variable
errors	Errors	String	Input	Read only	Variable
in1	Input 1	Real	Input	Read only	Variable
in2	Input 2	Real	Input	Read only	Variable
in3	Input 3	Real	Input	Read only	Variable
in4	Input 4	Real	Input	Read only	Variable
in5	Input 5	Real	Input	Read only	Variable
in6	Input 6	Real	Input	Read only	Variable
in7	Input 7	Real	Input	Read only	Variable
in8	Input 8	Real	Input	Read only	Variable

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "tm510", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Device address — to logical address of the device on the bus under the transport in step 1.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

2.2 EDWARDS TURBOMOLECULAR PUMPS (SCU750)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

Typical EDWARDS TURBOMOLECULAR PUMPS (http://edwardsvacuum.com) data acquisition by SCU750 Cotrol Unit protocol.

Sponsored by: Vassily Grigoriev, the Laboratory of Vacuum Technologies

Output user protocol's XML request structure
<mess addr="1" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote station address (<0 — single; >=0 — multi port);

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	SCU750
addr	Device address (-1...255)	Integer	Input	Not attribute	Constant	1
perGet	Period data getting (s)	Real	Input	Not attribute	Constant	10
version	Version	String	Input	Read only	Variable
snCntrUnit	Serial number: Control Unit	String	Input	Read only	Variable
snPump	Serial number: Pump	String	Input	Read only	Variable
cntPumpHour	Pump hour counter (minutes)	Real	Input	Read only	Variable
cntCntrUnitHour	Control unit hour counter (minutes)	Real	Input	Read only	Variable
cntStart	Start counter	Real	Input	Read only	Variable
operMode	Pump Operation Mode	String	Input	Read only	Variable
errors	Errors	String	Input	Read only	Variable
events	Events	String	Input	Read only	Variable
tTMS	TMS temperature (°С)	Integer	Input	Read only	Variable
tMotor	Motor temperature (°С)	Integer	Input	Read only	Variable
rotSpeed	Rotational speed (HZ)	Integer	Input	Read only	Variable
comStart	Command: START	Boolean	Input	Full access	Variable
comStop	Command: STOP	Boolean	Input	Full access	Variable
comReset	Command: RESET	Boolean	Input	Full access	Variable
spSpeed	Set point: Speed	Integer	Input	Full access	Variable
spTMSt	Set point: TMS temperature	Integer	Input	Read only	Variable
spSpeedPrev	Set point: Speed (previous)	Integer	Output	Not attribute	Variable
cnt	Counter	Integer	Output	Not attribute	Variable
operModes	Operation modes	Object	Output	Not attribute	Variable

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "SCU750", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Device address — to logical address of the device on the bus under the transport in step 1.
Period data getting — to needed acquisition period which more to the real processing by the logical level controller. Commands and some other functions will process immediately.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes. Also you are able to send some commands to the device through the writable attributes.

2.3 Sycon Multi Drop Protocol (SMDP)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

STM devices for resonant frequency measurement for mass of deposited films attached to their surface by Sycon Instruments, Inc. (http://www.sycon.com).

Sponsored by: Vassily Grigoriev, the Laboratory of Vacuum Technologies

Output user protocol's XML request structure
<mess addr="16" try="1" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote device address [16...254];

try — tries of the request;

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	SMDP
addr	Device address (16...254)	Integer	Input	Not attribute	Constant	16
perGet	Period data getting (s)	Real	Input	Not attribute	Constant	10
version	Firmware Version	String	Input	Read only	Variable
CfgPrmSSID	Configuration parameter session ID	Integer	Input	Read only	Variable
Srlno	Measurement serial number	Integer	Input	Read only	Variable
RawFreq	Channel freq.	Real	Input	Read only	Variable
GoodFreq	Last used, good channel freq. (Hz)	Real	Input	Read only	Variable
RawThick	Computed raw thickness, from frequency. (A)	Real	Input	Read only	Variable
XtalThick	Computed material related thickness, can be zeroed. (A)	Real	Input	Read only	Variable
XtalThick_F	Filtered computed material related thickness, can be zeroed. (A)	Real	Input	Read only	Variable
XtalRate	Rate, angstroms per second.	Real	Input	Read only	Variable
XtalRate_F	Rate, angstroms per second, filtered.	Real	Input	Read only	Variable
XtalLife	XtalLife (%)	Real	Input	Read only	Variable
XtalQual	Quality level (0-9).	Integer	Input	Read only	Variable
XtalQualPeak	Highest quality level seen (0-9).	Integer	Input	Read only	Variable
XtalStab	Stability level (0-9).	Integer	Input	Read only	Variable
XtalStabPeak	Highest stability level seen (0-9).	Integer	Input	Read only	Variable
XtalStat	Channel status.	String	Input	Read only	Variable
XtalLife_C	XtalLife (%).	Integer	Input	Read only	Variable
SessId	Session ID	Integer	Input	Full access	Variable
Fq	Xtal start freq. (Hz)	Real	Input	Full access	Variable
Fm	Xtal min freq. (Hz)	Real	Input	Full access	Variable
Density	Material density (gm/cc).	Real	Input	Full access	Variable
Zratio	Material Z ratio. Not scaled or unitized.	Real	Input	Full access	Variable
Tooling	1.000 is 100 % tooling (unity).	Real	Input	Full access	Variable
RateReq	Requested rate (A/S).	Real	Input	Full access	Variable
QlvlTrip	Quality threshold, if non 0 and exceeded, xtal fail occurs.	Integer	Input	Full access	Variable
SlvlTrip	Stability threshold, if non 0 and exceeded, xtal fail occurs.	Integer	Input	Full access	Variable

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "SMDP", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Device address — to logical address of the device on the bus under the transport in step 1.
Period data getting — to needed acquisition period which more to the real processing by the logical level controller. Commands and some other functions will process immediately.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes. Also you are able to send some commands to the device through the writable attributes.

2.4 Power supply for turbomolecular pumps (TMH)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

Power supply for turbomolecular pumps of the firm SHIMADZU, model EI-R04M.

Sponsored by: Vassily Grigoriev, the Laboratory of Vacuum Technologies

Output user protocol's XML request structure
<mess addr="1" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote station address (1...32);

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	TMP
addr	Device address (-1...255)	Integer	Input	Not attribute	Constant	1
perGet	Period data getting (s)	Real	Input	Not attribute	Constant	10
modelID	Model ID	String	Input	Read only	Variable
errors	Errors	String	Input	Read only	Variable
rotSpeed	Rotational speed (HZ)	Integer	Input	Read only	Variable
I	Current (A)	Real	Input	Read only	Variable
axle1disb	Axle 1 disbalance	Integer	Input	Read only	Variable
axle2disb	Axle 2 disbalance	Integer	Input	Read only	Variable
MP_X1	MP X1	Integer	Input	Read only	Variable
MP_Y1	MP Y1	Integer	Input	Read only	Variable
MP_X2	MP X2	Integer	Input	Read only	Variable
MP_Y2	MP Y2	Integer	Input	Read only	Variable
MP_Z	MP Z	Integer	Input	Read only	Variable
operMode	Operation Mode	String	Input	Read only	Variable
comStart	Command: START	Boolean	Input	Full access	Variable
comStop	Command: STOP	Boolean	Input	Full access	Variable
comReset	Command: RESET	Boolean	Input	Full access	Variable
operCntr	Operation Control Mode	String	Input	Read only	Variable
comInteract	Interactive mode	Boolean	Input	Full access	Variable
comAutonom	Autonomous mode	Boolean	Input	Full access	Variable
cnt	Counter	Integer	Output	Not attribute	Variable
operModes	Operation modes	Object	Output	Not attribute	Variable

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "TMP", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Device address — to logical address of the device on the bus under the transport in step 1.
Period data getting — to needed acquisition period which more to the real processing by the logical level controller. Commands and some other functions will process immediately.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes. Also you are able to send some commands to the device through the writable attributes.

2.5 Temperature measurement IT-3 (IT3)	1.2	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

Temperature measurement IT-3 from OmskEtalon.

Sponsored by: Vassily Grigoriev, the Laboratory of Vacuum Technologies

Output user protocol's XML request structure
<mess addr="1" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote station address (1...32);

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	IT3
addr	Device address	Integer	Input	Not attribute	Constant	1
T	Temperature	Real	Input	Read only	Variable
H	Upper border	Boolean	Input	Read only	Variable
L	Lower border	Boolean	Input	Read only	Variable
relSt	Relay state	Boolean	Input	Read only	Variable

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "IT3", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device, typical it is "{serDevPath}:4800:8N2".

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Device address — to logical address of the device on the bus under the transport in step 1.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

2.6 Power supply of beam-electrons evaporator (IVE-452HS-02)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

Power supply of beam-electrons evaporator of "Plasma Tech" Ltd, from Moskov.

Sponsored by: Vassily Grigoriev, the Laboratory of Vacuum Technologies

Output user protocol's XML request structure:
<mess addr="255" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote station address (0...255);

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.out_IVE
addr	Device address	Integer	Input	Not attribute	Constant	255
COIA	Output current level set-point	Integer	Output	Full access	Variable
COUA	Output voltage level set-point	Integer	Output	Full access	Variable
COPA	Output power level set-point	Integer	Output	Full access	Variable
DIA	Output current	Integer	Input	Read only	Variable
DUA	Output voltage	Integer	Input	Read only	Variable
DPA	Output power	Integer	Input	Read only	Variable
DFA	Electric arcs frequency	Integer	Input	Read only	Variable
DAC	Electric arcs counter	Integer	Input	Read only	Variable
COM_DEW	Command: Blocking by SC and XX	Boolean	Input	Full access	Variable
COM_OUT	Command: Display on UI out block's params	Boolean	Input	Full access	Variable
COM_DEP	Command: Enable MK	Boolean	Input	Full access	Variable
COM_DEL	Command: Blocks #1,2 to net	Boolean	Input	Full access	Variable
COM_UF	Command: Display on UI frequency and current	Boolean	Input	Full access	Variable
DKW	MUBR of the block overheated	Boolean	Input	Read only	Variable
DKZ	Short circuits on the block out	Boolean	Input	Read only	Variable
DK	MK of the block overheated	Boolean	Input	Read only	Variable
DE	Power and voltage on out present	Boolean	Input	Read only	Variable

Configuring and using

1. Create an output transport of the type "Serial" directly or by the "Sockets" gate, and set its Identifier like to "Sockets.out_IVE", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Device address — to logical address of the device on the bus under the transport in step 1. Tracing for the address changing is supported.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes. Also you are able to send some commands to the device through the writable attributes.

2.7 OPTRIS CT/CTL (OPTRIS)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

OPTRIS CT/CTL communication interface of "Optris" GmbH, from Berlin.

Sponsored by: Vassily Grigoriev, the Laboratory of Vacuum Technologies

Output user protocol's XML request structure
<mess addr="1" cs="1" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote station address (0...15);

сs — use control sum for SET commands [0,1];

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.out_OPTRIS
addr	Device address	Integer	Input	Not attribute	Constant	1
Tproc	T process	Real	Input	Read only	Variable
Thead	T head	Real	Input	Read only	Variable
Tbox	T box	Real	Input	Read only	Variable
Tact	T act.	Real	Input	Read only	Variable
eps	IR epsilon	Real	Input	Full access	Variable
trans	IR transmission	Real	Input	Full access	Variable
spIll	Spot illumination	Logical	Input	Full access	Variable

Configuring and using

1. Create an output transport of the type "Serial" directly or by the "Sockets" gate, and set its Identifier like to "Serial.out_OPTRIS", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Device address — to logical address of the device on the bus under the transport in step 1.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes. Also you are able to send some commands to the device through the writable attributes.

2.8 CTR 100, 101 (CTR)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

The RS232C Serial Interface permits the communication between the digital Oerlikon Leybold Vacuum CERAVAC, from Köln.

Sponsored by: Vassily Grigoriev, the Laboratory of Vacuum Technologies

Output user protocol's XML request structure
<mess err="1:Error">{req}</mess>

req — request/respond data;

err — sets to result of the request.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.out_CTR
press	Pressure, Tor	Real	Output	Read only	Variable
zeroSet	Zero set	Logical	Input	Full access	Variable

Configuring and using

1. Create an output transport of the type "Serial" directly or by the "Sockets" gate, and set its Identifier like to "Serial.out_CTR", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes. Also you are able to send some commands to the device through the writable attributes.

2.9 Shark Slave Communication Protocol (SSCP)	0.6	GPLv2	*	en, uk, ru	Roman Savochenko

Shark Slave Communication Protocol from EnergoCentrum PLUS, s.r.o.

Total complexity: 1.35 HD^[!]
Sponsored by, for whole complexity: Costumer Faster CZ

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport of the Ethernet network, Sockets	String	Input	Not attribute	Constant	SSCP
addr	Address [0...255]	Integer	Input	Not attribute	Constant	1
user	User	String	Input	Not attribute	Constant	admin
pass	Password	String	Input	Not attribute	Constant	rw
maxDtFrm	Maximum data frame size	Integer	Input	Not attribute	Constant	2048
listsDir	Folder of the list files	String	Input	Not attribute	Constant	SSCP
verPrt	Protocol version	Integer	Input	Read only	Variable
maxDtFrmServ	Server's maximum data frame size	Integer	Input	Read only	Variable
list	Variables selected for processing	Text	Input	Full access	Variable
this	Object	Object	Input	Not attribute	Variable

Configuring and using

1. Create an output transport of the type "Sockets", set its Identifier like to "SSCP", one for each the device.

2. Set proper address of the Sockets device to IP-address or host address of the remote device in the Ethernet network.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Address — to logical address of the device on the bus under the transport in step 1.

6. RESULT: The logical parameter object will perform:

reading files of lists listsDir for creation and content forming of the attribute "selList" of list of all allowed device's attributes;
reading of content of the attribute list of selected device's attributes to dynamic form their representing attributes into the parameter object;
reading of the dynamic formed representing attributes;
checking for changes and writing of the dynamic formed representing attributes.

2.10 Pulsar-M (pulsarM)	1.0	GPLv2	*	en, uk, ru	Roman Savochenko

Pulsar-M counters protocol.

Sponsored by: Zubarev Dmitry, IP INTEGRAL

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.out_pulsar
addr	Address [0...99999999]	Integer	Input	Not attribute	Constant	12345678
nChnl	Channels number	Integer	Input	Full access	Variable	0
this	Object	Object	Input	Not attribute	Variable

Configuring and using

1. Create an output transport of the type "Serial" directly or by the "Sockets" gate, and set its Identifier like to "Serial.out_pulsar", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Address — to logical address of the device on the bus under the transport in step 1. Tracing for the address changing is supported.

6. RESULT: The logical parameter object will: dynamically create needed attributes accordingly to the attribute "Channels number" value and perform interaction and placing of gathered data to the parameter attributes. Also you are able to change some writable attributes.

2.11 VSE002 (VSE002)	1.0	GPLv2	*	en	Roman Savochenko

The template implements for main data acquisition of the vibration sensors of the firm IFM according to the reverse-engineering. Development and testing was performed on base of the sensor VSE002, so you can use the template in compatible devices.

The main data are ones transferred by the packages with indexed parameters: B16 — two different and B20 — one with three additional. The parameters are specific for configuration the device, so their representative attributes are created dynamically at receiving the packages. The template provides also of creation the aliased attributes with user specified ID and some simple processing by their describing in the attribute "User signals (custSign)".

Total complexity: 3.0 HD^[!]
Sponsored by: Vinnica Poultry Farm

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.VSE:10.63.42.224:3321
tmCon	Reconnection time, in seconds	Integer	Input	Not attribute	Constant	10
custSign	User signals in the format — "{code}:{id}:{mult}"	Text	Input	Full access	Variable
tr	Output transport	Object	Output	Not attribute	Variable
custSignO	Object of the user signals	Object	Output	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0

Configuring and using

1. Create and start a logical controller object — one for each the devices since traffic is big (~2KB/s) with the execution period in 1 (one) second.

2. Create one logical parameter object and select this template for it — enable the parameter.

3. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the automatically created transport with its parameters after ":", according to the function SYS.Transport.outAt() address format.
Reconnection time — in time of detection the data missing for reconnection, due to the request is only one and next we filter the data stream.
User signals — describes of aliases to the obtaining parameters in the format "{code}:{id}:{mult}", when for the code parameter is created attribute id with the value multiplication mult.

4. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

2.12 Incubator (Incubator)	1.0	GPLv2	*	en	Roman Savochenko

The template implements the data acquisition of the Incubator Machines of firm ? in active and passive modes according to the reverse-engineering.

Data of the machines is static but due to implementing two modes — active and passive, their attributes are created dynamically. The active mode means direct data requesting in a corresponded machine, when the passive mode is filtered whole traffic in the RS422 network and is created child virtual parameters for each machine corresponding to the obtained data.

The template implements the collection of statistics about the network in general and for each individual machine.

General statistics include: the number of read and processed packages, and the time of the last one; the remaining time (seconds) before the restart-reconnection of the transport in the absence of traffic in the input channel from "Reconnection time, data missing for passive (tmCon)".

The statistics of a separate machine include: the number of received and processed packages, and the time of the last one; the current data update periodicity with maximum; the number of machine shutdowns, i.e. setting the attributes of the machine parameters in EVAL due to the lack of packages data during the specified time "Time of missing the machine data to set EVAL (tmToEVAL)".

Total complexity: 4.3 HD^[!]
Sponsored by: Vinnica Poultry Farm

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.LE:10.39.170.2:9761
addr	Device address [0...255], and -1 for the passive mode	Integer	Input	Not attribute	Constant	1
tmCon	Reconnection time, data missing for passive, in seconds	Integer	Input	Not attribute	Constant	10
tmToEVAL	Time of missing the machine data to set EVAL	Integer	Input	Not attribute	Constant	120
tr	Output transport	Object	Output	Not attribute	Variable
machs	Machines	Object	Output	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create and start a logical controller object or use any present one with need scheduling properties.

2. Create a logical parameter object and select this template for it, one for each the devices in the active mode or one for whole devices in the RS422 network for the passive mode — enable the parameter.

3. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the automatically created transport with its parameters after ":", according to the function SYS.Transport.outAt() address format.
Device address [0...255], and -1 for the passive mode — set here the corresponded device address for the active mode or -1 for the passive mode.
Reconnection time, data missing for passive — in time of detection the data missing for reconnection in the passive filtering mode.
Time of missing the machine data to set EVAL — in time of detection the machine data missing for marking its attributes to EVAL in the passive filtering mode.

4. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

2.13 MTP 4D (MTP4D)	1.1	GPLv2	*	en,uk,ru	Roman Savochenko

The connection template of a simple vacuumeter MTP 4D of the firm "Erstevak Ltd".

Total complexity: 0.3 HD^[!]
Sponsored by, for whole complexity: Magomed, SAVTECH

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.MTP
addr	Device address, [1...999]	Integer	Input	Not attribute	Constant	1
type	Device type	String	Input	Read only	Variable
P	Pressure	Real	Input	Read only	Variable
zeroP	Set zero	Boolean	Input	Full access	Variable
zeroAP	Set atmosphere	Boolean	Input	Full access	Variable
tr	Output transport	Object	Input	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Serial" directly or by the "Sockets" gate, and set its Identifier like to "MTP", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for the devices on one bus — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to address of the transport into step 1. Tracing for the address changing is supported.
Device address — to logical address of the device on the bus under the transport in step 1. Tracing for the address changing is supported.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes. Also you are able to change some writable attributes.

3 Counters of the resources

3.1 Heat counter computer VKT7 (VKT7)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Roman Savochenko

Firm "Teplocom" (http://www.teplocom.spb.ru) computer "VKT-7" for complex heat measurement and counting. The device complex enough to provide more parameters, more history and accessed by a nonlinear Serial-based protocol at low speed. The template implements acquisition for all significant parameters, gets for their history by hours, days and result months. Also you can to append easily enough for processing of the remained parameters.

Total complexity: 4.9 HD^[!]
Sponsored by, for initial implementation on 4.0 HD^[!]: Vladislav Chubuk, Teplocom LTD

Output user protocol's XML request structure
<mess addr="1" err="1:Error">{req}</mess>

req — request/respond data;

addr — remote station address (0...254);

err — sets for the request result.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
imit	Imitation drift % (0-disable)	Real	Input	Not attribute	Constant	0
trAddr	Transport	String	Input	Not attribute	Constant	Transport.Serial.out_VKT7
arhH	Archiver: hours	String	Input	Not attribute	Constant
arhD	Archiver: days	String	Input	Not attribute	Constant
arhRes	Archiver: results-month	String	Input	Not attribute	Constant
maxDayDepth	Archiver: maximum depth of reading for not hours archivers, days	Integer	Input	Not attribute	Constant	366
lastResTm	Last result months read time (s)	Integer	Output	Full access	Variable	0
leftResTm	Left result months for read from archive	Integer	Output	Read only	Variable
lastDTm	Last days read time (s)	Integer	Output	Full access	Variable	0
leftDTm	Left days for read from archive	Integer	Output	Read only	Variable
lastHTm	Last hours read time (s)	Integer	Output	Full access	Variable
leftHTm	Left hours for read from archive	Integer	Output	Read only	Variable
diffTm	Difference time (server-counter), hours	Integer	Input	Read only	Variable
firmVer	Firmware version	Real	Input	Read only	Variable
abonId	Subscriber ID	String	Input	Read only	Variable
repDay	Report day	Integer	Input	Read only	Variable
netNum	Network number	Integer	Input	Read only	Variable
modelImpl	Model implementation	Integer	Input	Read only	Variable
tTypeM	t: dimension	String	Input	Read only	Variable
GTypeM	G: dimension	String	Input	Read only	Variable
VTypeM	V: dimension	String	Input	Read only	Variable
MTypeM	M: dimension	String	Input	Read only	Variable
PTypeM	P: dimension	String	Input	Read only	Variable
QoTypeM	Qo: dimension	String	Input	Read only	Variable
QntTypeHIM	ВНР: dimension	String	Input	Read only	Variable
QntTypeM	ВОК: dimension	String	Input	Read only	Variable
t1_1	t1 (Tв1)	Real	Input	Full access	Variable
t2_1	t2 (Tв1)	Real	Input	Full access	Variable
t3_1	t3 (Tв1)	Real	Input	Full access	Variable
V1_1	V1 (Tв1)	Real	Input	Full access	Variable
V2_1	V2 (Tв1)	Real	Input	Full access	Variable
V3_1	V3 (Tв1)	Real	Input	Full access	Variable
M1_1	M1 (Tв1)	Real	Input	Full access	Variable
M2_1	M2 (Tв1)	Real	Input	Full access	Variable
M3_1	M3 (Tв1)	Real	Input	Full access	Variable
P1_1	P1 (Tв1)	Real	Input	Full access	Variable
P2_1	P2 (Tв1)	Real	Input	Full access	Variable
Mg_1	Mg (Tв1)	Real	Input	Full access	Variable
Qo_1	Qo (Tв1)	Real	Input	Full access	Variable
Qg_1	Qg (Tв1)	Real	Input	Full access	Variable
dt_1	dt (Tв1)	Real	Input	Full access	Variable
BNR_1	ВНР (Tв1)	Real	Input	Full access	Variable
BOC_1	ВОС (Tв1)	Real	Input	Full access	Variable
G1_1	G1 (Tв1)	Real	Input	Full access	Variable
G2_1	G2 (Tв1)	Real	Input	Full access	Variable
t1_2	t1 (Tв2)	Real	Input	Full access	Variable
t2_2	t2 (Tв2)	Real	Input	Full access	Variable
t3_2	t3 (Tв2)	Real	Input	Full access	Variable
V1_2	V1 (Tв2)	Real	Input	Full access	Variable
V2_2	V2 (Tв2)	Real	Input	Full access	Variable
V3_2	V3 (Tв2)	Real	Input	Full access	Variable
M1_2	M1 (Tв2)	Real	Input	Full access	Variable
M2_2	M2 (Tв2)	Real	Input	Full access	Variable
M3_2	M3 (Tв2)	Real	Input	Full access	Variable
P1_2	P1 (Tв2)	Real	Input	Full access	Variable
P2_2	P2 (Tв2)	Real	Input	Full access	Variable
Mg_2	Mg (Tв2)	Real	Input	Full access	Variable
Qo_2	Qo (Tв2)	Real	Input	Full access	Variable
Qg_2	Qg (Tв2)	Real	Input	Full access	Variable
dt_2	dt (Tв2)	Real	Input	Full access	Variable
BNR_2	ВНР (Tв2)	Real	Input	Full access	Variable
BOC_2	ВОС (Tв2)	Real	Input	Full access	Variable
G1_2	G1 (Tв2)	Real	Input	Full access	Variable
G2_2	G2 (Tв2)	Real	Input	Full access	Variable

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "VKT7", one for each the devices.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Create or use a minutes (current ones) value archivator object (1m, period=60sek.).

6. Create a hours value archivator object (arhH, period=3600sek.), a days value archivator object (arhD, 86400sek.) and a result month value archivator object (arhM, 86400sek.). Set the "Period archiving (sec)" property of the archivators to '0' for disable the data flow from the archive buffer.

7. Into the tab "Template configuration" of the logical parameter object you need to set:

Imitation drift % — to '0' for the imitation disable.
Transport — to path of the transport into step 1, like to "Transport.Serial.out_VKT7".
Archiver: hours — to the hours archiver into step 6, like to "FSArch.arhH".
Archiver: days — to the days archiver into step 6, like to "FSArch.arhD".
Archiver: results-month — to the result month archiver into step 6, like to "FSArch.arhM".
Archiver: maximum depth of reading for not hours archivers, days — to needed depth of not hours archives reading, in days.

8. Into the tab "Archiving" to set archiving for needed attributes by the archivators.

9. RESULT: The logical parameter object will perform interaction and placing of current gathered data to the parameter attributes and the current archive. Other archives' data will read in parallel from the previously set depth per one value for the period i.e. one day (for the days archive) per the minute period and up to the current and last value.

3.2 Slot LTD devices (SLOT)	0.8	GPLv2	*	en	Roman Savochenko

The template implements support for counters and correctors of the "SLOT" LTD production. The devices protocol is flexible and uniform for implementation of reading all available archives also as setting the configuration fields, but currently there was need only for reading the hourly archives, so the template reads the daily and hourly archives and some set of the instantaneous parameters.

The template includes also code for connect the counters through modems using the AT-commands.

Total complexity: 4.8 HD^[!]
Sponsored by: Vinnica Poultry Farm

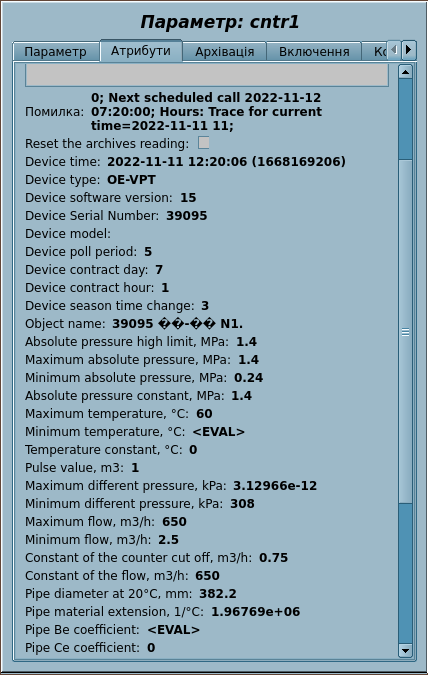

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.SLOT:10.39.77.10:4001
modem	Modem In the format "{TelN}[:{Init1}[:{Init2}[...{InitN}]]]"	String	Input	Not attribute	Constant
modemTm	Modem times In the format "{tm}:{ConTm}"	String	Input	Not attribute	Constant	40:5
addr	Device address [0...65535]	Integer	Input	Not attribute	Constant	1
pipeN	Pipe number [0...1]	Integer	Input	Not attribute	Constant	0
sched	Scheduling at CRON	String	Input	Read only	Link
arhTmLim	Time limit of processing the archiving, seconds	Integer	Input	Not attribute	Constant	120
arhD	OpenSCADA archiver for device archive of days	String	Input	Not attribute	Constant
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
reset	Reset the archives reading	Boolean	Input	Full access	Variable
devTime	Device time	String	Input	Read only	Variable
devTp	Device type	String	Input	Read only	Variable
devSWVers	Device software version	String	Input	Read only	Variable
devSN	Device Serial Number	Integer	Input	Read only	Variable
devModel	Device model	String	Input	Read only	Variable
devPollPer	Device poll period	Integer	Input	Read only	Variable
devContrDay	Device contract day	Integer	Input	Read only	Variable
devContrHour	Device contract hour	Integer	Input	Read only	Variable
devSesonTimeCh	Device season time change	Integer	Input	Read only	Variable
objNm	Object name	String	Input	Read only	Variable
apH	Absolute pressure high limit, MPa	Real	Input	Read only	Variable
apMax	Maximum absolute pressure, MPa	Real	Input	Read only	Variable
apMin	Minimum absolute pressure, MPa	Real	Input	Read only	Variable
apConst	Absolute pressure constant, MPa	Real	Input	Read only	Variable
tMax	Maximum temperature, °С	Real	Input	Read only	Variable
tMin	Minimum temperature, °С	Real	Input	Read only	Variable
tConst	Temperature constant, °С	Real	Input	Read only	Variable
pulseVl	Pulse value, m3	Real	Input	Read only	Variable
dpMax	Maximum different pressure, kPa	Real	Input	Read only	Variable
dpMin	Minimum different pressure, kPa	Real	Input	Read only	Variable
fMax	Maximum flow, m3/h	Real	Input	Read only	Variable
fMin	Minimum flow, m3/h	Real	Input	Read only	Variable
cntrCutOffConst	Constant of the counter cut off, m3/h	Real	Input	Read only	Variable
flowConst	Constant of the flow, m3/h	Real	Input	Read only	Variable
pipeD	Pipe diameter at 20°С, mm	Real	Input	Read only	Variable
pipeTExt	Pipe material extension, 1/°С	Real	Input	Read only	Variable
pipeBeCoef	Pipe Be coefficient	Real	Input	Read only	Variable
pipeCeCoef	Pipe Ce coefficient	Real	Input	Read only	Variable
pipeRoughCoef	Pipe roughness coefficient	Real	Input	Read only	Variable
diaphD	Diaphragm diameter at 20°С, mm	Real	Input	Read only	Variable
diaphTExt	Diaphragm material extension, 1/°С	Real	Input	Read only	Variable
diaphBeCoef	Diaphragm Be coefficient	Real	Input	Read only	Variable
diaphCeCoef	Diaphragm Ce coefficient	Real	Input	Read only	Variable
diaphEdgeBluntCoef	Diaphragm edge blunting coefficient	Real	Input	Read only	Variable
correctorTime	Corrector time	String	Input	Read only	Variable
dP	Pressure difference, kPa [arh]	Real	Input	Read only	Variable
P	Pressure, MPa [arh]	Real	Input	Read only	Variable
T	Temperature, °С [arh]	Real	Input	Read only	Variable
Fstd	Volume standard cond., m3 [arh]	Real	Input	Read only	Variable
Fwork	Volume work cond., m3 [arh]	Real	Input	Read only	Variable
itSt	Item status [arh]	String	Input	Read only	Variable
tr	Output transport	Object	Output	Not attribute	Variable
reqCntr	Counter of the requests and the reconnection waiting (negative)	Real	Input	Not attribute	Variable	0
arhLastD	Daily archive last item	Integer	Input	Not attribute	Variable	0
arhLastH	Hourly archive last item	Integer	Input	Not attribute	Variable	0
this	Object of the parameter	Object	Input	Not attribute	Variable
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create and start a logical controller object or use any present one with need scheduling properties.

2. Create a logical parameter object and select this template for it, one for each the devices — enable the parameter.

3. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the automatically created transport with its parameters after ":", according to the function SYS.Transport.outAt() address format.
Modem — here you can set the modem configuration in the format "{TelN}[:{Init1}[:{Init2}[...{InitN}]]]" if your device accessed through a modem.
Modem times — here you can change the default modem timeouts in the form "{tm}:{ConTm}" if your device accessed through a modem.
Device address [0...65535] — set here the device address — Serial Number converted from hex to decimal.
Pipe number [0...1] — change here the default pipe of the device.
Scheduling at CRON — set here the logical execution at the CRON.
Time limit of processing the archiving, seconds — change here the default safety timeout.
OpenSCADA archiver for device archive of days — set here the archive used for storing the daily (86400 seconds) values — enables the day archive reading.
OpenSCADA archiver for device's archive of hours — set here the archive used for storing the hourly (3600 seconds) values — enables the hour archive reading.

4. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

3.3 Corrector BK (CorBK)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for BK Correctors of Gas Flow in most completed volume, that is it is the most complex and advanced template for this consumer.

Parameters, provided by this protocol, are static, that is all their representing attributes are provided by the template. Part of these parameters have hourly (4 parameters), day (6 parameters) and month (4 parameters) history. Some part of the parameters are settings. And the protocol also provides reading of the alarm history. Archives reading enabled only for specified archivers in the proper configuration fields.

The template works in two modes: initial and tracing. Where the initial mode means first reading all archives from hourly one and switching to the tracing mode after finish the reading, that is reading current values and the fresh archiving.

Status of the template is shown in the "Error (err)" attribute with information about the mode and position of the read data of the archives. Due to the communication is slow and archives can be big, status of the read archive data saved at it change, that is you can stop the template or disable PC in whole but the template will continue the archives reading from saved position and not from the begin, which reset you can by the proper boolean attribute.

Total complexity: 5.2 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.out_BK
addr	Device address [0...15]	Integer	Input	Not attribute	Constant	1
curRegul	Current values request in regular	Boolean	Input	Not attribute	Constant	0
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
arhD	OpenSCADA archiver for device's archive of days	String	Input	Not attribute	Constant
arhM	OpenSCADA archiver for device's archive of months	String	Input	Not attribute	Constant
arhAlrm	OpenSCADA archiver for device's archive of Alarms	String	Input	Not attribute	Constant
arhTryPer	Currents try period, seconds	Integer	Input	Not attribute	Constant	3600
arhTmLim	Time limit of processing of archiving, seconds	Integer	Input	Not attribute	Constant	40
reset	Reset the archives reading and configuration	Boolean	Input	Full access	Variable
dtTm	Date and time	String	Output	Read only	Variable
devSt	Device state	String	Output	Read only	Variable
motoHours	Moto-hours	Integer	Input	Read only	Variable
vWork	Volume: work	Real	Input	Read only	Variable
vAccWork	Volume: accumulated work	Real	Input	Read only	Variable
vResult	Volume: resume	Real	Input	Read only	Variable
vAccResult	Volume: accumulated resume	Real	Input	Read only	Variable
p	Pressure	Real	Input	Read only	Variable
t	Temperature	Real	Input	Read only	Variable
pFact	Pressing factor	Real	Input	Read only	Variable
fWork	Flow: work	Real	Input	Read only	Variable
fResult	Flow: resume	Real	Input	Read only	Variable
stN2	Set: Concentration N2	Real	Output	Full access	Variable
stCO2	Set: Concentration CO2	Real	Output	Full access	Variable
stQ	Set: Gas density, kg/m3	Real	Output	Full access	Variable
stBP	Set: Barometric pressure, kgs/sm2	Real	Output	Full access	Variable
stSubPL	Set: Pressure substitution for lower border, kgs/sm2	Real	Output	Full access	Variable
stSubPH	Set: Pressure substitution for high border, kgs/sm3	Real	Output	Full access	Variable
stSubT	Set: Temperature substitution, °С	Real	Output	Full access	Variable
stFH	Set: Flow maximum, m3/h	Real	Output	Full access	Variable
stFL	Set: Flow minimum, m3/h	Real	Output	Full access	Variable
stSubFL	Set: Flow substitution for lower border, m3/h	Real	Output	Full access	Variable
stSubFH	Set: Flow substitution for high border, m3/h	Real	Output	Full access	Variable
arhs	Archives object	Object	Output	Not attribute	Variable
this	Object of the parameter	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000

Configuring and using

1. Create an output transport of the type "Sockets" or "Serial" and set its Identifier like to "BK", one for each the device.

2. Set proper address and timeouts of the Sockets or Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties — must be set in the period 10...60 seconds.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport in step 1.
Device address [0...15] — to logical address of the device on the bus under the transport in step 1. Tracing for the address changing is supported.
Current values request in regular — a sign of requesting current values in regular, which can be disabled for saving the device battery.
OpenSCADA archiver for device's archive of hours — set to the value archiver whole ID like to "FSArch.1h" for an archiver with data quality-period in 3600 seconds — create one at missing.
OpenSCADA archiver for device's archive of days — set to the value archiver whole ID like to "FSArch.1d" for an archiver with data quality-period in 86400 seconds — create one at missing.
OpenSCADA archiver for device's archive of months — set to the value archiver whole ID like to "FSArch.1m" for an archiver with data quality-period in 86400 seconds — create one at missing.
OpenSCADA archiver for device's archive of Alarms — set to the message archiver whole ID like to "FSArch.alarms" for an archiver — create one at missing.
Currents try period — to reading period of current values and last archive values.
Time limit of processing of archiving — to time limit of execution the procedure during archives reading.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes and archives.

7. In the process of the working, through the tab "Archiving" you have to select the archiving parameters in the used archivers to create the representative archives.

8. ... through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Reset the archives reading and configuration — to reset positions of the archive reading.
Set: ... — to set need device settings.

3.4 AutoPILOT PRO Flow Computers (AutoPILOT)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for AutoPILOT PRO Flow Computers from Thermo Fisher Scientific.

Communication protocol of the devices is based on ModBus but it implements only nonstandard functions.

Parameters, provided by this protocol, are mixed for static and dynamic, that is attributes for archiving parameters are provided by the template and settings from some table can be specified in the attribute "Read tables set" for dynamic creation the representative attributes. Table 128 also has named parameters. For archiving parameters (8) there are provided hourly and daily archives. Also there are provided alarms and audits archives.

The template works in two modes: initial and tracing. Where the initial mode means first reading all archives from hourly one and switching to the tracing mode after finish the reading, that is reading fresh archiving and the specified tables of the settings.

Status of the template is shown in the "Error (err)" attribute with information about the mode and position of the read data of the archives.

Total complexity: 4.25 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.pilot
addr	Device address [0...255]	Integer	Input	Not attribute	Constant	1
tmConTry	Connection try time, seconds	Integer	Input	Not attribute	Constant	60
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
arhD	OpenSCADA archiver for device's archive of days	String	Input	Not attribute	Constant
arhALRM	OpenSCADA archiver for device's archive of ALARMS	String	Input	Not attribute	Constant
arhAUDIT	OpenSCADA archiver for device's archive of AUDIT	String	Input	Not attribute	Constant
tmZone	Archive time zone	Integer	Input	Not attribute	Constant	5
tmPoolEv	Poll events (ALARMS and AUDITS) time, seconds	Integer	Input	Not attribute	Constant	3600
rdTblsSet	Read tables set by: "{tblN}:{pgN}:{updPer}:{reqSubStr}"	Text	Input	Full access	Variable
reset	Reset the archives reading	Boolean	Input	Full access	Variable
vAcc	Accumulated Volume	Real	Input	Read only	Variable
dp	Average Different Pressure	Real	Input	Read only	Variable
p	Average Static Pressure	Real	Input	Read only	Variable
t	Average Temperature	Real	Input	Read only	Variable
flowTm	Flow Time Minute	Real	Input	Read only	Variable
grav	Average Gravity	Real	Input	Read only	Variable
C	Average Carbon	Real	Input	Read only	Variable
N	Average Nitrogen	Real	Input	Read only	Variable
tr	Output transport	Object	Output	Not attribute	Variable
reqCntr	Counter of the requests and the reconnection waiting (negative)	Real	Input	Not attribute	Variable	0
arhLastH	Hour archive last item	Integer	Input	Not attribute	Variable	0
arhLastD	Daily archive last item	Integer	Input	Not attribute	Variable	0
arhLastALRM	ALARM archive last item	Integer	Input	Not attribute	Variable	0
arhLastAUDIT	AUDIT archive last item	Integer	Input	Not attribute	Variable	0
this	Object of the parameter	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Sockets" or "Serial" and set its Identifier like to "pilot", one for each the device.

2. Set proper address and timeouts of the Sockets or Serial device.

3. Create and start a logical controller object or a ModBus controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the created transport in Step 1. Leave the field empty for the ModBus controller object. Tracing for the address changing is supported.
Device address [0...255] — to logical address of the device on the bus under the transport in Step 1.
Connection try time — to time of try and restore loss connections.
OpenSCADA archiver for device's archive of hours — set to the value archiver whole ID like to "FSArch.1h" for an archiver with data quality-period in 3600 seconds — create one at missing.
OpenSCADA archiver for device's archive of days — set to the value archiver whole ID like to "FSArch.1d" for an archiver with data quality-period in 86400 seconds — create one at missing.
OpenSCADA archiver for device's archive of ALARMS — set to the message archiver whole ID like to "FSArch.alarms" for an archiver — create one at missing.
OpenSCADA archiver for device's archive of AUDIT — set to the message archiver whole ID like to "FSArch.audit" for an archiver — create one at missing.
Archive time zone — to timezone of the remote archives' time.
Poll events (ALARMS and AUDITS) time — to time of checking new alarms and audits.
Read tables set — to reading setting tables by lines in the format "{tblN}:{pgN}:{updPer}:{reqSubStr}".

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes and archives.

7. In the process of the working, through the tab "Archiving" you have to select the archiving parameters in the used archivers to create the representative archives.

8. ... through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Reset the archives reading — to reset positions of the archive reading.

3.5 AutoPILOT Flow Computers (AutoPILOT_old)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for AutoPILOT Flow Gas Computers from Thermo Fisher Scientific known as old devices of the firm, when new-pro ones are here.

Communication protocol of the devices is completely specific and also works on serial busses with the same CRC algorithm as in ModBus/RTU.

Parameters, provided by this protocol, are all static, that is the representative attributes are provided by the template. For archiving parameters (6) there are provided hourly and daily archives.

The template works in two modes: initial and tracing. Where the initial mode means first reading all archives from hourly one and switching to the tracing mode after finish the reading, that is reading fresh archiving, the instantaneous and calculated data.

Status of the template is shown in the "Error (err)" attribute with information about the mode and position of the read data of the archives.

Total complexity: 1.2 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.pilotOld
addr	Device address [0...255]	Integer	Input	Not attribute	Constant	1
tmConTry	Connection try time, seconds	Integer	Input	Not attribute	Constant	60
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
arhD	OpenSCADA archiver for device's archive of days	String	Input	Not attribute	Constant
arhTmLim	Time limit of processing the archiving, seconds	Integer	Input	Not attribute	Constant	40
reset	Reset the archives reading	Boolean	Input	Full access	Variable
dtTm	Date and time	String	Input	Read only	Variable
dp	[H] Average Different Pressure	Real	Input	Read only	Variable
p	[H] Average Static Pressure	Real	Input	Read only	Variable
t	[H] Average Temperature	Real	Input	Read only	Variable
sqrRootExt	[H] Square Root Extension	Real	Input	Read only	Variable
f	Instantaneous Flow Rate	Real	Input	Read only	Variable
fTotal	[H] Current Day Flow Total	Real	Input	Read only	Variable
eTotal	[H] Current Day Energy Total	Real	Input	Read only	Variable
fAcc	Total Accumulated Flow	Real	Input	Read only	Variable
b	Beta	Real	Input	Read only	Variable
supComprF	Supercompressibility Factor	Real	Input	Read only	Variable
Fr	Fr (Fn - 2530-92)	Real	Input	Read only	Variable
E_D	E_over_D (in Fr) (Fsl - 2530-92)	Real	Input	Read only	Variable
K	K (in Fr) (Fc - 2530-92)	Real	Input	Read only	Variable
Fb	Fb (Red - 2530-92)	Real	Input	Read only	Variable
Fg	Fg	Real	Input	Read only	Variable
Fa	Fa (Y1 - 2530-92)	Real	Input	Read only	Variable
Ftf	Ftf	Real	Input	Read only	Variable
Fpb	Fpb	Real	Input	Read only	Variable
Ftb	Ftb	Real	Input	Read only	Variable
extFY	Expansion Factor Y (Spare-2530-92)	Real	Input	Read only	Variable
subFY	Y Subfactor (Spare-2530-92)	Real	Input	Read only	Variable
yestDayTotal	Yesterday Total	Real	Input	Read only	Variable
factFlowSt	Factor: Flow Status	Integer	Input	Read only	Variable
factFwv	Factor: Fwv	Real	Input	Read only	Variable
factWatCnt	Factor: Water Content	Real	Input	Read only	Variable
factWellStr	Factor: Well Stream	Real	Input	Read only	Variable
factGasVeloc	Factor: Gas Velocity	Real	Input	Read only	Variable
factLocGrav	Factor: Local Gravity	Real	Input	Read only	Variable
factCalbGrav	Factor: Calib. Gravity	Real	Input	Read only	Variable
tr	Output transport	Object	Output	Not attribute	Variable
reqCntr	Counter of the requests and the reconnection waiting (negative)	Real	Input	Not attribute	Variable	0
arhLastH	Hour archive last item	Integer	Input	Not attribute	Variable	0
arhLastD	Daily archive last item	Integer	Input	Not attribute	Variable	0
this	Object of the parameter	Object	Input	Not attribute	Variable
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000

Configuring and using

1. Create an output transport of the type "Sockets" or "Serial" and set its Identifier like to "pilotOld", one for each the device.

2. Set proper address and timeouts of the Sockets or Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the created transport in Step 1. Tracing for the address changing is supported.
Device address [0...255] — to logical address of the device on the bus under the transport in Step 1.
Connection try time — to time of try and restore loss connections.
OpenSCADA archiver for device's archive of hours — set to the value archiver whole ID like to "FSArch.1h" for an archiver with data quality-period in 3600 seconds — create one at missing.
OpenSCADA archiver for device's archive of days — set to the value archiver whole ID like to "FSArch.1d" for an archiver with data quality-period in 86400 seconds — create one at missing.
Time limit of processing the archiving — to limit time of processing the archives in one cycle.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes and archives.

7. In the process of the working, through the tab "Archiving" you have to select the archiving parameters in the used archivers to create the representative archives.

8. ... through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Reset the archives reading — to reset positions of the archive reading.

3.6 Goboy 1M (Goboy1M)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for Goboy 1M Gas Counters.

Communication protocol of the devices is based on ModBus but it implements only nonstandard functions.

Parameters, provided by this protocol, are all static, that is the representative attributes are provided by the template. For archiving parameters (7) there are provided hourly, daily and month archives.

The template works in two modes: initial and tracing. Where the initial mode means first reading all archives from hourly one and switching to the tracing mode after finish the reading, that is reading fresh archiving and current data.

Status of the template is shown in the "Error (err)" attribute with information about the mode and position of the read data of the archives.

Total complexity: 1.0 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.goboy
addr	Device address [0...247]	Integer	Input	Not attribute	Constant	1
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
arhD	OpenSCADA archiver for device's archive of days	String	Input	Not attribute	Constant
arhM	OpenSCADA archiver for device's archive of months	String	Input	Not attribute	Constant
arhTryPer	Currents try period, seconds	Integer	Input	Not attribute	Constant	3600
arhTmLim	Time limit of processing the archiving, seconds	Integer	Input	Not attribute	Constant	40
reset	Reset the archives reading and configuration	Boolean	Input	Full access	Variable
devManuf	Device manufacturer	String	Input	Read only	Variable
devNameVer	Device name and SW version	String	Input	Read only	Variable
devSN	Device SN	String	Input	Read only	Variable
batV	Battery voltage	Real	Input	Read only	Variable
batMinV	Battery minimum voltage	Real	Input	Read only	Variable
baseL	Base length, mm	Real	Input	Read only	Variable
baseD	Base diameter, mm	Real	Input	Read only	Variable
sndSpd	Sound speed, m/s	Real	Input	Read only	Variable
flowSpd	Flow speed, m/s	Real	Input	Read only	Variable
p	Gas P, kPa [arh]	Real	Input	Read only	Variable
t	Gas T, °С [arh]	Real	Input	Read only	Variable
coefCompr	Coefficient of the compression	Real	Input	Read only	Variable
notWorkTm	Not work time [arh]	Integer	Input	Read only	Variable
curTm	Current time	String	Input	Full access	Variable
arhStart	Archive begin	String	Input	Read only	Variable
arhLastH	Archive last hour	String	Input	Read only	Variable
arhLastD	Archive last day	String	Input	Read only	Variable
arhLastM	Archive last month	String	Input	Read only	Variable
cntH	Count hour	Integer	Input	Full access	Variable
vWork	Volume: work, m3 [arh]	Real	Input	Read only	Variable
vAccWork	Volume: accumulated work, m3 [arh]	Real	Input	Read only	Variable
vResult	Volume: resume, m3 [arh]	Real	Input	Read only	Variable
vAccResult	Volume: accumulated resume, m3 [arh]	Real	Input	Read only	Variable
fWork	Flow: work, m3/h	Real	Input	Read only	Variable
fResult	Flow: resume, m3/h	Real	Input	Read only	Variable
arhs	Archives object	Object	Output	Not attribute	Variable
tr	Output transport	Object	Output	Not attribute	Variable
this	Object of the parameter	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000

Configuring and using

1. Create an output transport of the type "Sockets" or "Serial" and set its Identifier like to "goboy", one for each the device.

2. Set proper address and timeouts of the Sockets or Serial device.

3. Create and start a logical controller object or a ModBus controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the created transport in Step 1. Leave the field empty for the ModBus controller object. Tracing for the address changing is supported.
Device address [0...247] — to logical address of the device on the bus under the transport in Step 1.
OpenSCADA archiver for device's archive of hours — set to the value archiver whole ID like to "FSArch.1h" for an archiver with data quality-period in 3600 seconds — create one at missing.
OpenSCADA archiver for device's archive of days — set to the value archiver whole ID like to "FSArch.1d" for an archiver with data quality-period in 86400 seconds — create one at missing.
OpenSCADA archiver for device's archive of months — set to the value archiver whole ID like to "FSArch.1m" for an archiver with data quality-period in 86400 seconds — create one at missing.
Currents try period — to reading period of current values and last archive values.
Time limit of processing of archiving — to time limit of execution the procedure during archives reading.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes and archives.

7. In the process of the working, through the tab "Archiving" you have to select the archiving parameters in the used archivers to create the representative archives.

8. ... through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Reset the archives reading and configuration — to reset positions of the archive reading.
Current time — to time on PLC.
Count hour — account hour of day.

3.7 Ultramag (UltraMag)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for Ultramag Gas Meters of the firm "EPO Signal" LTD.

Communication protocol of the devices is based on ModBus but with support only function 4 (Read Input Registers) and 16 (Preset Multiple Registers). The protocol supports reading archives also, that is why it implemented as a different template.

Parameters, provided by this protocol, are static, that is all their representing attributes are provided by the template. Part of these parameters have hourly (4 parameters), day (6 parameters) and month (4 parameters) history. Archives reading enabled only for specified archivers in the proper configuration fields.

The template works in two modes: initial and tracing. Where the initial mode means first reading all archives from hourly one and switching to the tracing mode after finish the reading, that is reading current values and the fresh archiving.

Status of the template is shown in the "Error (err)" attribute with information about the mode and position of the read data of the archives. Due to the communication is slow and archives can be big, status of the read archive data saved at it change, that is you can stop the template or disable PC in whole but the template will continue the archives reading from saved position and not from the begin, which reset you can by the proper boolean attribute.

Total complexity: 1.0 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.umag
addr	Device address [0...247]	Integer	Input	Not attribute	Constant	1
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
arhD	OpenSCADA archiver for device's archive of days	String	Input	Not attribute	Constant
arhM	OpenSCADA archiver for device's archive of months	String	Input	Not attribute	Constant
arhTryPer	Currents try period, seconds	Integer	Input	Not attribute	Constant	3600
arhTmLim	Time limit of processing of archiving, seconds	Integer	Input	Not attribute	Constant	40
reset	Reset the archives reading and configuration	Boolean	Input	Full access	Variable
devManuf	Device manufacturer	String	Input	Read only	Variable
devSN	Device SN	String	Input	Read only	Variable
sensP_SN	Sensor P SN	String	Input	Read only	Variable
sensT_SN	Sensor T SN	String	Input	Read only	Variable
p	Gas P, kPa [arh]	Real	Input	Read only	Variable
t	Gas T, °С [arh]	Real	Input	Read only	Variable
coefCor	Coefficient of the correction	Real	Input	Read only	Variable
curTm	Current time	String	Input	Read only	Variable
vWork	Volume: work, m3 [arh]	Real	Input	Read only	Variable
vAccWork	Volume: accumulated work [arh]	Real	Input	Read only	Variable
vResult	Volume: standard, m3 [arh]	Real	Input	Read only	Variable
vAccResult	Volume: accumulated resume [arh]	Real	Input	Read only	Variable
fWork	Flow: work, m3/h	Real	Input	Read only	Variable
fResult	Flow: standard, m3/h	Real	Input	Read only	Variable
arhs	Archives object	Object	Output	Not attribute	Variable
tr	Output transport	Object	Output	Not attribute	Variable
this	Object of the parameter	Object	Input	Not attribute	Variable
f_err	Function error	String	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Sockets" or "Serial" and set its Identifier like to "umag", one for each the device.

2. Set proper address and timeouts of the Sockets or Serial device.

3. Create and start a logical controller object or a ModBus controller object or use any present one with need scheduling properties — must be set in the period 10...60 seconds.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the created transport in Step 1. Leave the field empty for the ModBus controller object. Tracing for the address changing is supported.
Device address [0...247] — to logical address of the device on the bus under the transport in Step 1.
OpenSCADA archiver for device's archive of hours — set to the value archiver whole ID like to "FSArch.1h" for an archiver with data quality-period in 3600 seconds — create one at missing.
OpenSCADA archiver for device's archive of days — set to the value archiver whole ID like to "FSArch.1d" for an archiver with data quality-period in 86400 seconds — create one at missing.
OpenSCADA archiver for device's archive of months — set to the value archiver whole ID like to "FSArch.1m" for an archiver with data quality-period in 86400 seconds — create one at missing.
Currents try period — to reading period of current values and last archive values.
Time limit of processing of archiving — to time limit of execution the procedure during archives reading.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes and archives.

7. In the process of the working, through the tab "Archiving" you have to select the archiving parameters in the used archivers to create the representative archives.

8. ... through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Reset the archives reading and configuration — to reset positions of the archive reading.

3.8 Tancy Data (TDS)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for Tianxin V1 protocol of Gas Correctors TC220 from GasElectro. Communication protocol of the devices is completely specific.

Parameters, provided by this protocol, are all static, that is the representative attributes are provided by the template. For archiving parameters (4) there is provided only the hourly archive.

Total complexity: 0.95 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Serial.out_TDS
addr	Device address [0...255]	Integer	Input	Not attribute	Constant	0
tryPer	Currents try period, seconds	Integer	Input	Not attribute	Constant	600
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
dtTm	Date and time	String	Output	Read only	Variable
p	Pressure	Real	Input	Read only	Variable
t	Temperature	Real	Input	Read only	Variable
fWork	Flow: work	Real	Input	Read only	Variable
fResult	Flow: resume	Real	Input	Read only	Variable
tr	Output transport	Object	Output	Not attribute	Variable
this	Object of the parameter	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Sockets" or "Serial" and set its Identifier like to "TDS", one for each the device.

2. Set proper address and timeouts of the Sockets or Serial device — the symbol/next timeout must be big enough for archives reading since the response packages can come with the interval about 5 seconds.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the created transport in Step 1. Tracing for the address changing is supported.
Device address [0...255] — to logical address of the device on the bus under the transport in Step 1.
Currents try period — to reading period of current values and last archive values.
OpenSCADA archiver for device's archive of hours — set to the value archiver whole ID like to "FSArch.1h" for an archiver with data quality-period in 3600 seconds — create one at missing.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes and archives.

7. In the process of the working, through the tab "Archiving" you have to select the archiving parameters in the used archivers to create the representative archives.

3.9 Flow GAS (FlowGAS)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for FlowGas Gas Correctors of the firm "EPO Signal" LTD.

Communication protocol of the devices is based on standard ModBus but with re-implementing function 16 for reading archives. So, the template became the first one used the template "ModBus base (mbBase)" in own ground.

Parameters, provided by this protocol, are mixed for static and dynamic, that is attributes for archiving parameters are provided by the template and extra current ones can be specified in the attribute "Items set" for dynamic creation the representative attributes. For archiving parameters (4) there is provided only the hourly archive.

The template works in two modes: initial and tracing. Where the initial mode means first reading all archives from hourly one and switching to the tracing mode after finish the reading, that is reading current values and the fresh archiving.

Status of the template is shown in the "Error (err)" attribute with information about the mode and position of the read data of the archives. Due to the communication is slow and archives can be big, status of the read archive data saved at it change, that is you can stop the template or disable PC in whole but the template will continue the archives reading from saved position and not from the begin, which reset you can by the proper boolean attribute.

Total complexity: 1.3 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.fgas
addr	Device address [0...247]	Integer	Input	Not attribute	Constant	1
mbType	ModBus type [RTU\|ASCII\|TCP]	String	Input	Not attribute	Constant	RTU
maxBlkSz	ModBus maximum block size [10...200]	Integer	Input	Not attribute	Constant	200
arhH	OpenSCADA archiver for device's archive of hours	String	Input	Not attribute	Constant
arhTmLim	Time limit of processing the archiving, seconds	Integer	Input	Not attribute	Constant	40
items	Items set "[u\|i\|u2\|i2\|u4\|i4\|r\|s]:{addr}:{w\|r\|~}:{id}:{nm}"	Text	Input	Full access	Variable
reset	Reset the archives reading and configuration	Boolean	Input	Full access	Variable
tr	Output transport	Object	Input	Not attribute	Variable
p	Pressure (history)	Real	Input	Read only	Variable
t	Temperature (history)	Real	Input	Read only	Variable
vWork	Volume: work (history)	Real	Input	Read only	Variable
vResult	Volume: resume (history)	Real	Input	Read only	Variable
arhs	Archives object	Object	Output	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Serial" or "Sockets", and set its Identifier like to "fgas", one for each the devices' used serial bus.

2. Set proper address and timeouts of the device.

3. Create and start a logical controller object or a ModBus controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for the devices on one bus — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the created transport in Step 1. Leave the field empty for the ModBus controller object. Tracing for the address changing is supported.
Device address [0...255] — to logical address of the device on the bus under the transport in Step 1.
ModBus type (for the logical controller object) — to the ModBus protocol type/variant from the list RTU, ASCII, TCP — set to RTU.
ModBus maximum block size (for the logical controller object) — to the ModBus protocol package data maximum size in the range [10...200].
OpenSCADA archiver for device's archive of hours — set here the archive used for storing the hourly (3600 seconds) values — enables the hour archive reading.
Time limit of processing the archiving, seconds — change here the default safety timeout.

6. RESULT: The logical parameter object will: perform interaction and placing of gathered data to the parameter attributes, dynamically create needed attributes accordingly to the attribute "Items set" value and perform interaction and placing of gathered data to the parameter attributes. Also you are able to change for writable attributes.

7. In the process of the working, through the tab "Archiving" you have to select the archiving parameters in the used archivers to create the representative archives.

8. ... through the tab "Attributes" of operational data, in addition to obtaining the result, it is possible to perform operative setup and control on:

Reset the archives reading and configuration — to reset positions of the archive reading.

3.10 Enron, Daniel (enronDaniel)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for Enron, Daniel Gas Counters.

Communication protocol of the devices is based on ModBus but with registers size 4 bytes instead standard 2 bytes, that is they cannot be polled by the standard OpenSCADA module DAQ.ModBus. So, the template implements that protocol variant on the Logical Level and with main features of the DAQ.ModBus module, that is allows for free registers specifying. On ground the module later was created the "ModBus base (mbBase)" template as a base for further creation related to ModBus templates with standard functions and additional implementing only specific functions.

For numbers need registers go to documentation of vendor the devices! The template provides only reading current values and has not got any archives due to missing such feature in the communication protocol.

Total complexity: 0.6 HD^[!]
Ordered by: BLUE STAR GROUP Ltd

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.enron
addr	Device address [0...247]	Integer	Input	Not attribute	Constant	1
mbType	ModBus type [RTU\|ASCII\|TCP]	String	Input	Not attribute	Constant	RTU
maxBlkSz	ModBus maximum block size [10...200]	Integer	Input	Not attribute	Constant	12
fragMerge	ModBus blocks merging	Boolean	Input	Not attribute	Constant	0
items	Items set "[u\|i\|r\|s]:{addr}:{w\|r}:{id}:{nm}"	Text	Input	Full access	Variable
tr	Output transport	Object	Input	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0

Configuring and using

1. Create an output transport of the type "Serial" or "Sockets", and set its Identifier like to "enron", one for each the devices' used serial bus.

2. Set proper address and timeouts of the device.

3. Create and start a logical controller object or a ModBus controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for the devices on one bus — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the created transport in Step 1. Leave the field empty for the ModBus controller object. Tracing for the address changing is supported.
Device address (for the logical controller object) — to logical address of the device on the bus under the transport in Step 1.
ModBus type (for the logical controller object) — to the ModBus protocol type/variant from the list RTU, ASCII, TCP — set to RTU.
ModBus maximum block size (for the logical controller object) — to the ModBus protocol package data maximum size in the range [10...200].
ModBus blocks merging (for the logical controller object) — for allowance of merging the ModBus protocol fragmented blocks of the registers.

6. RESULT: The logical parameter object will: dynamically create needed attributes accordingly to the attribute "Items set" value and perform interaction and placing of gathered data to the parameter attributes. Also you are able to change for writable attributes.

3.11 Mercury 200 (m200)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Arsen Zakojan

One phase counter of electricity Mercury 200, 203.2Т, 206 from the firm "Incotex" (http://www.incotexcom.ru)

Output user protocol's XML request structure
<req first="255" second="16777215" data="{req}">{resp}</req>

req — request data;

resp — respond data;

first, second — first and three of second's bytes of the common address (0...4294967295).

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
s	Energy from reset, tariffs sum	String	Input	Read only	Variable
t1	Energy from reset, tariff 1	Real	Input	Read only	Variable
t2	Energy from reset, tariff 2	Real	Input	Read only	Variable
t3	Energy from reset, tariff 3	Real	Input	Read only	Variable
t4	Energy from reset, tariff 4	Real	Input	Read only	Variable
U	Voltage U(V)	Real	Input	Read only	Variable
I	Current I(A)	Real	Input	Read only	Variable
P	Power P(W)	Real	Input	Read only	Variable
transport	Transport	String	Input	Not attribute	Constant	merc200
netaddr	Network address	Real	Input	Not attribute	Constant	1
naladchik	Coded address by the program Fixer+	Boolean	Input	Not attribute	Constant	0
tarif	Read energy from reset	Boolean	Input	Not attribute	Constant	1
UIP	Read current values	Boolean	Input	Not attribute	Constant	1
first	First byte of the address	Integer	Input	Not attribute	Variable
second	Last 3 bytes of the address	Integer	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_frq	Function calculate frequency (Hz)	Real	Input	Not attribute	Variable	1000

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "merc200", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Network address — to logical address of the device on the bus under the transport in step 1.
Coded address by the program Fixer+ — set the flag for counters coded by the program. Most likely the address will equal to apartment number.
Read energy from reset — set the flag if you need the data.
Read current values — set the flag to read current values.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

3.12 Mercury 230 (m230)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Arsen Zakojan

Three phase counter of electricity Mercury 230, 231, 232, 233, 234, 236 from the firm "Incotex" (http://www.incotexcom.ru)

Output user protocol's XML request structure
<req netaddr="255" data="{req}">{resp}</req>

req — request data;

resp — respond data;

netaddr — network address; for counters Mercury 230, 231 and 233 the tree last digits are serial number or they are last two digits for the number more to 240; if the last numbers are zero, the network address is "1"; universal, broadcast address is "0".

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
answer	Answer to the password request	String	Input	Read only	Variable
TS	Read energy of tariffs sum	Boolean	Input	Not attribute	Constant	0
T1	Read energy of tariff 1	Boolean	Input	Not attribute	Constant	0
T2	Read energy of tariff 2	Boolean	Input	Not attribute	Constant	0
T3	Read energy of tariff 3	Boolean	Input	Not attribute	Constant	0
T4	Read energy of tariff 4	Boolean	Input	Not attribute	Constant	0
P	Read power P	Boolean	Input	Not attribute	Constant	0
Q	Read power Q	Boolean	Input	Not attribute	Constant	0
S	Read power S	Boolean	Input	Not attribute	Constant	0
U	Read voltage U	Boolean	Input	Not attribute	Constant	0
I	Read current I	Boolean	Input	Not attribute	Constant	0
K	Read power coefficient	Boolean	Input	Not attribute	Constant	0
F	Read frequency F	Boolean	Input	Not attribute	Constant	0
N	Read serial number	Boolean	Input	Not attribute	Constant	0
TSAp	Energy from resetting, tariffs sum A+	Real	Input	Read only	Variable
TSAm	Energy from resetting, tariffs sum A-	Real	Input	Read only	Variable
TSRp	Energy from resetting, tariffs sum R+	Real	Input	Read only	Variable
TSRm	Energy from resetting, tariffs sum R-	Real	Input	Read only	Variable
T1Ap	Energy from resetting, tariff 1 A+	Real	Input	Read only	Variable
T1Am	Energy from resetting, tariff 1 A-	Real	Input	Read only	Variable
T1Rp	Energy from resetting, tariff 1 R+	Real	Input	Read only	Variable
T1Rm	Energy from resetting, tariff 1 R-	Real	Input	Read only	Variable
T2Ap	Energy from resetting, tariff 2 A+	Real	Input	Read only	Variable
T2Am	Energy from resetting, tariff 2 A-	Real	Input	Read only	Variable
T2Rp	Energy from resetting, tariff 2 R+	Real	Input	Read only	Variable
T2Rm	Energy from resetting, tariff 2 R-	Real	Input	Read only	Variable
T3Ap	Energy from resetting, tariff 3 A+	Real	Input	Read only	Variable
T3Am	Energy from resetting, tariff 3 A-	Real	Input	Read only	Variable
T3Rp	Energy from resetting, tariff 3 R+	Real	Input	Read only	Variable
T3Rm	Energy from resetting, tariff 3 R-	Real	Input	Read only	Variable
T4Ap	Energy from resetting, tariff 4 A+	Real	Input	Read only	Variable
T4Am	Energy from resetting, tariff 4 A-	Real	Input	Read only	Variable
T4Rp	Energy from resetting, tariff 4 R+	Real	Input	Read only	Variable
T4Rm	Energy from resetting, tariff 4 R-	Real	Input	Read only	Variable
PS	Power P(W) by the phases sum	Real	Input	Read only	Variable
P1	Power P(W) by the phase 1	Real	Input	Read only	Variable
P2	Power P(W) by the phase 2	Real	Input	Read only	Variable
P3	Power P(W) by the phase 3	Real	Input	Read only	Variable
QS	Power Q(var) by the phases sum	Real	Input	Read only	Variable
Q1	Power Q(var) by the phase 1	Real	Input	Read only	Variable
Q2	Power Q(var) by the phase 2	Real	Input	Read only	Variable
Q3	Power Q(var) by the phase 3	Real	Input	Read only	Variable
SS	Power S(VA) by the phases sum	Real	Input	Read only	Variable
S1	Power S(VA) by the phase 1	Real	Input	Read only	Variable
S2	Power S(VA) by the phase 2	Real	Input	Read only	Variable
S3	Power S(VA) by the phase 3	Real	Input	Read only	Variable
U1	Voltage U(V) by the phase 1	Real	Input	Read only	Variable
U2	Voltage U(V) by the phase 2	Real	Input	Read only	Variable
U3	Voltage U(V) by the phase 3	Real	Input	Read only	Variable
I1	Current I(A) by the phase 1	Real	Input	Read only	Variable
I2	Current I(A) by the phase 2	Real	Input	Read only	Variable
I3	Current I(A) by the phase 3	Real	Input	Read only	Variable
KS	Power coefficient by the phases sum	Real	Input	Read only	Variable
K1	Power coefficient by the phase 1	Real	Input	Read only	Variable
K2	Power coefficient by the phase 2	Real	Input	Read only	Variable
K3	Power coefficient by the phase 3	Real	Input	Read only	Variable
F1	Frequency F(Hz)	Real	Input	Read only	Variable
N1	Serial number	String	Input	Read only	Variable
netaddr	Network address (0...240)	Integer	Input	Not attribute	Constant	1
password	Password	String	Input	Not attribute	Constant	111111
transport	Transport	String	Input	Not attribute	Constant	merc230
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_frq	Function calculate frequency (Hz)	Real	Input	Not attribute	Variable	1000

Configuring and using

1. Create an output transport of the type "Serial" and set its Identifier like to "merc230", one for each the devices' used serial bus.

2. Set proper address and timeouts of the Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Network address (0...240) — to logical address of the device on the bus under the transport in step 1.
Password — first level password, by default 111111.
Set flags for all parameters you need to read.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

3.13 Nik2303I (Nik2303I)	1.0	GPLv2	* => UserProtocol	en, uk, ru	Ruslan Yarmoliuk

Three phase counter of electricity NIK 2303 from firm NIK LLC (http://www.nik.net.ua).

Output user protocol's XML request structure
<req SN="1234567" cntr="0x10">{resp}</req>

SN — serial number of the counter;

cntr — control word;

resp — respond data.

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.out_
serial	Factory number of the counter	String	Input	Not attribute	Constant
passw	Password	String	Input	Not attribute	Constant	1111111111111111
kT	Coefficient of transformation	Integer	Input	Not attribute	Constant	1
T0	Current values	Boolean	Input	Not attribute	Constant	0
T1	Current values tariff T1	Boolean	Input	Not attribute	Constant	0
T2	Current values tariff T2	Boolean	Input	Not attribute	Constant	0
T3	Current values tariff T3	Boolean	Input	Not attribute	Constant	0
U	Instantaneous value "Voltage"	Boolean	Input	Not attribute	Constant	0
I	Instantaneous value "Current"	Boolean	Input	Not attribute	Constant	0
P	Instantaneous value "Power"	Boolean	Input	Not attribute	Constant	0
kP	Instantaneous value "Power coefficient"	Boolean	Input	Not attribute	Constant	0
Q	Instantaneous value "Power reactive"	Boolean	Input	Not attribute	Constant	0
K	Instantaneous value "Vectors angle"	Boolean	Input	Not attribute	Constant	0
Ae	А+(kW*h)	Real	Output	Read only	Variable
Ae_	А-(kW*h)	Real	Output	Read only	Variable
Re	R+(1+2quadrant)(kVar*h)	Real	Output	Read only	Variable
Re_	R-(3+4quadrant)(kVar*h)	Real	Output	Read only	Variable
Ae1	А1+(kW*h)	Real	Output	Read only	Variable
Ae_1	А1-(kW*h)	Real	Output	Read only	Variable
Re1	R1+(1+2quadrant)(kVar*h)	Real	Output	Read only	Variable
Re_1	R1-(3+4quadrant)(kVar*h)	Real	Output	Read only	Variable
Ae2	А2+(kW*h)	Real	Output	Read only	Variable
Ae_2	А2-(kW*h)	Real	Output	Read only	Variable
Re2	R2+(1+2quadrant)(kVar*h)	Real	Output	Read only	Variable
Re_2	R2-(3+4quadrant)(kVar*h)	Real	Output	Read only	Variable
Ae3	А3+(kW*h)	Real	Output	Read only	Variable
Ae_3	А3-(kW*h)	Real	Output	Read only	Variable
Re3	R3+(1+2quadrant)(kVar*h)	Real	Output	Read only	Variable
Re_3	R3-(3+4quadrant)(kVar*h)	Real	Output	Read only	Variable
U1	Phase voltage 1(V)	Real	Output	Read only	Variable
U2	Phase voltage 2(V)	Real	Output	Read only	Variable
U3	Phase voltage 3(V)	Real	Output	Read only	Variable
I1	Phase current 1(A)	Real	Output	Read only	Variable
I2	Phase current 2(A)	Real	Output	Read only	Variable
I3	Phase current 3(A)	Real	Output	Read only	Variable
kP1	Power coeff. cos φ phase 1	Real	Output	Read only	Variable
kP2	Power coeff. cos φ phase 2	Real	Output	Read only	Variable
kP3	Power coeff. cos φ phase 3	Real	Output	Read only	Variable
Psum	Summary active power (kW)	Real	Output	Read only	Variable
P1	Active power phase 1 (kW)	Real	Output	Read only	Variable
P2	Active power phase 2 (kW)	Real	Output	Read only	Variable
P3	Active power phase 3 (kW)	Real	Output	Read only	Variable
Qsum	Summary reactive power (kVar)	Real	Output	Read only	Variable
Q1	Reactive power phase 1 (kVar)	Real	Output	Read only	Variable
Q2	Reactive power phase 2 (kVar)	Real	Output	Read only	Variable
Q3	Reactive power phase 3 (kVar)	Real	Output	Read only	Variable
V12	Vector angle U1_U2 (degr.)	Integer	Output	Read only	Variable
V13	Vector angle U1_U3 (degr.)	Integer	Output	Read only	Variable
this	Object	Object	Input	Not attribute	Variable
NAME	Name	String	Input	Read only	Variable
SHIFR	Shifr	String	Input	Read only	Variable
DESCR	Description	String	Input	Read only	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_frq	Function calculate frequency (Hz)	Real	Input	Not attribute	Variable	1000

Configuring and using

1. Create an output transport of the type "Sockets" or "Serial" and set its Identifier like to "nik2303", one for each the device.

2. Set proper address and timeouts of the Sockets or Serial device.

3. Create and start a logical controller object or use any present one with need scheduling properties.

4. Create a logical parameter object and select the template for that, one for each the devices — enable the parameter.

5. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to Identifier of the transport into step 1.
Factory number of the counter — to proper factory number of the counter.
Password — first level password, by default 1111111111111111.
Coefficient of transformation — at accounting through the current transformers set the coefficient, by default it us — 1.
Set flags for all parameters you need to read.

6. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

3.14 FF LE-03MB CT (FF_LE)	1.0	GPLv2	*	en	Roman Savochenko

The template implements support for counters of electricity bidirectional on 1-phase/3-phase with analyse the network parameters LE-03MB CT of the firm "F&F".

Protocol of the counters is M-bus and it doesn't provide of reading the data history, so the template has to obtain instant values only with need periodicity related to the network quality. Data of the counters are completely static, that is all their representing attributes are provided by the template.

Coefficients for P (in 100) and P_{N} (in 1000) was set at demands of the end user, so that is no error.

Total complexity: 0.9 HD^[!]
Sponsored by: Vinnica Poultry Farm

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.LE:10.39.170.2:9761
addr	Device address [0...255]	Integer	Input	Not attribute	Constant	1
tr	Output transport	Object	Output	Not attribute	Variable
EnActFull	Energy Active Full, kWh	Real	Output	Read only	Variable
EnActImp	Energy Active Import, kWh	Real	Output	Read only	Variable
EnActExp	Energy Active Export, kWh	Real	Output	Read only	Variable
EnActFullDrop	Energy Active Full drops, kWh	Real	Output	Read only	Variable
EnActImpDrop	Energy Active Import drops, kWh	Real	Output	Read only	Variable
EnActExpDrop	Energy Active Export drops, kWh	Real	Output	Read only	Variable
EnReactFull	Energy Reactive Full, kVAh	Real	Output	Read only	Variable
EnReactImp	Energy Reactive Import, kWh	Real	Output	Read only	Variable
EnReactExp	Energy Reactive Export, kWh	Real	Output	Read only	Variable
EnReactFullDrop	Energy Reactive Full drops, kWh	Real	Output	Read only	Variable
EnReactImpDrop	Energy Reactive Import drops, kWh	Real	Output	Read only	Variable
EnReactExpDrop	Energy Reactive Export drops, kWh	Real	Output	Read only	Variable
V_L1	Voltage L1, V	Real	Output	Read only	Variable
V_L2	Voltage L2, V	Real	Output	Read only	Variable
V_L3	Voltage L3, V	Real	Output	Read only	Variable
V_L12	Voltage L1-L2, V	Real	Output	Read only	Variable
V_L23	Voltage L2-L3, V	Real	Output	Read only	Variable
V_L31	Voltage L3-L1, V	Real	Output	Read only	Variable
I_1	Current L1, A	Real	Output	Read only	Variable
I_2	Current L2, A	Real	Output	Read only	Variable
I_3	Current L3, A	Real	Output	Read only	Variable
I_N	Current N, A	Real	Output	Read only	Variable
P	P Full, kW	Real	Output	Read only	Variable
P_1	P L1, kW	Real	Output	Read only	Variable
P_2	P L2, kW	Real	Output	Read only	Variable
P_3	P L3, kW	Real	Output	Read only	Variable
Pr	Pr Full, kVA	Real	Output	Read only	Variable
Pr_1	Pr 1, kVA	Real	Output	Read only	Variable
Pr_2	Pr 2, kVA	Real	Output	Read only	Variable
Pr_3	Pr 3, kVA	Real	Output	Read only	Variable
CoefP	CoefP Full	Real	Output	Read only	Variable
CoefP_1	CoefP 1	Real	Output	Read only	Variable
CoefP_2	CoefP 2	Real	Output	Read only	Variable
CoefP_3	CoefP 3	Real	Output	Read only	Variable
this	Object	Object	Input	Not attribute	Variable
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0

Configuring and using

1. Create and start a logical controller object or use any present one with need scheduling properties.

2. Create a logical parameter object and select this template for it, one for each the devices — enable the parameter.

3. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the automatically created transport with its parameters after ":", according to the function SYS.Transport.outAt() address format.
Device address [0...255] — set here the device address.

4. RESULT: The logical parameter object will perform interaction and placing of gathered data to the parameter attributes.

3.15 Ergomera 625 (ergomera625)	0.1	GPLv2	*	en	Roman Savochenko

The template implements support for Ergomera 625 Counters of electricity and it based on the common template "ModBus base (mbBase)" since protocol of the counters grounded on standard ModBus function in main parameters.

The template currently supports only reading the ModBus registers without accessing the history due to the device protocol has got common problems here.

Total complexity: 0.3 HD^[!]
Sponsored by: Vinnica Poultry Farm

Template IOs


Identifier	Parameter	Type	Mode	Attribute	Configuration	Value
transport	Transport	String	Input	Not attribute	Constant	Sockets.em625:10.39.170.4:5555
addr	Device address [0...247]	Integer	Input	Not attribute	Constant	1
mbType	ASCII\|TCP]	String	Input	Not attribute	Constant	RTU
maxBlkSz	ModBus maximum block size, [10...200]	Integer	Input	Not attribute	Constant	200
fragMerge	ModBus blocks merging	Boolean	Input	Not attribute	Constant	1
items	Items set Rows in the form "[u\|i\|u2\|i2\|u4\|i4\|r\|s]:{addr}:{w\|r\|~}:{id}[:{nm}]".	Text	Input	Full access	Variable	#<SnthHgl font="monospace"><rule expr="^#[^\n]" color="gray" font_italic="1"/><rule expr=":[rw~]:" color="red"/><rule expr=":(0[xX][0-9a-fA-F]\|[0-9]),?(0[xX][0-9a-fA-F]\|[0-9]),?(0[xX][0-9a-fA-F]\|[0-9]),?(0[xX][0-9a-fA-F]\|[0-9])" color="blue"/><rule expr="^(u\|i\|u2\|i2\|u4\|i4\|r\|s)" color="darkorange"/><rule expr="\\:" color="blue"/></SnthHgl>
tr	Output transport	Object	Input	Not attribute	Variable
this	Object	Object	Input	Not attribute	Variable
f_start	Function start flag	Boolean	Input	Not attribute	Variable	0
f_stop	Function stop flag	Boolean	Input	Not attribute	Variable	0
f_frq	Frequency of calculation of the function, Hz	Real	Input	Not attribute	Variable	1000
f_err	Function error	String	Input	Not attribute	Variable	0

Configuring and using

1. Create and start a logical controller object or use any present one with need scheduling properties.

2. Create a logical parameter object and select this template for it, one for each the devices — enable the parameter.

3. Into the tab "Template configuration" of the logical parameter object you need to set:

Transport — to the address of the automatically created transport with its parameters after ":", according to the function SYS.Transport.outAt() address format.
Device address [0...247] — set here the device address.
ModBus type (for the logical controller object) — to the ModBus protocol type/variant from the list — RTU.
ModBus maximum block size (for the logical controller object) — to the ModBus protocol package data maximum size in the range [10...200] — 200.
ModBus blocks merging (for the logical controller object) — for allowance of merging the ModBus protocol fragmented blocks of the registers — 1.

6. RESULT: The logical parameter object will: dynamically create needed attributes accordingly to the attribute "Items set" value and perform interaction and placing of gathered data to the parameter attributes. Also you are able to change writable attributes.

Libs/Devices

Contents

1 Common protocols

1.1 ModBus scanner (ModBusScan)

1.2 ModBus base (mbBase)

1.3 DCON Protocol + Input AI (DCON_Prt)

1.4 DCON Protocol + Input AO (DCON_Prt_AO)

1.5 DCON Protocol + Input DI (DCON_Prt_DI)

1.6 DCON Protocol + Input DO (DCON_Prt_DO)

1.7 Distributed Network Protocol 3 (DNP3)

1.8 IEC-60870 (IEC60870)

1.9 IEC-62056 (IEC62056)

1.10 OWEN (OWEN)

2 Industrial automation devices

2.1 Elemer TM510x (TM510x)

2.2 EDWARDS TURBOMOLECULAR PUMPS (SCU750)

2.3 Sycon Multi Drop Protocol (SMDP)

2.4 Power supply for turbomolecular pumps (TMH)

2.5 Temperature measurement IT-3 (IT3)

2.6 Power supply of beam-electrons evaporator (IVE-452HS-02)

2.7 OPTRIS CT/CTL (OPTRIS)

2.8 CTR 100, 101 (CTR)

2.9 Shark Slave Communication Protocol (SSCP)

2.10 Pulsar-M (pulsarM)

2.11 VSE002 (VSE002)

2.12 Incubator (Incubator)

2.13 MTP 4D (MTP4D)

3 Counters of the resources

3.1 Heat counter computer VKT7 (VKT7)

3.2 Slot LTD devices (SLOT)

3.3 Corrector BK (CorBK)

3.4 AutoPILOT PRO Flow Computers (AutoPILOT)

3.5 AutoPILOT Flow Computers (AutoPILOT_old)

3.6 Goboy 1M (Goboy1M)

3.7 Ultramag (UltraMag)

3.8 Tancy Data (TDS)

3.9 Flow GAS (FlowGAS)

3.10 Enron, Daniel (enronDaniel)

3.11 Mercury 200 (m200)

3.12 Mercury 230 (m230)

3.13 Nik2303I (Nik2303I)

3.14 FF LE-03MB CT (FF_LE)

3.15 Ergomera 625 (ergomera625)

Navigation menu

Search
