Повідомлення створено: 26. 12. 2012 [08:34]
|
|
ajinkya
Ajinkya Biradar
Автор теми
Зареєстрован(а) с: 17.12.2012
Повідомлення: 23
|
Hello
I am trying to communicate to a host in network via openSCADA.
I want to send a magic packet (wake on LAN packet) to the PC in order to switch it on. (I have enabled the wake on lan option in boot manager.)
I have a GUI created in figure shown below. When I press switch on button the magic packet should be sent to perticular IP(host).
So question is
how to send a TCP packet via openSCADA?
Where should i write code for that in "Transport protocols -> Modbus" or in "process tab of widget"?
Also In what all places i need to do changes?
Thank you
Вкладений файл
|
|
Повідомлення створено: 26. 12. 2012 [19:25]
|
|
roman
Roman Savochenko
Moderator Contributor Developer
Зареєстрован(а) с: 12.12.2007
Повідомлення: 3750
|
"ajinkya" wrote:
So question is
Questions are not "Features and service request"!
"ajinkya" wrote:
how to send a TCP packet via openSCADA?
Where should i write code for that in "Transport protocols -> Modbus" or in "process tab of widget"?
Also In what all places i need to do changes?
Into DAQ template or DAQ.JavaLikeCalc controller direct. Read patient QuickStart http://wiki.oscada.org/HomePageEn/Doc/QuickStart#h995-26
and
http://wiki.oscada.org/HomePageEn/Doc/QuickStart#h995-9
And use user API functions: messIO()
http://wiki.oscada.org/HomePageEn/Doc/ProgrammManual#h946-14
Learn, learn and learn better than work, work and work.
|
|
Повідомлення створено: 27. 12. 2012 [13:36]
|
|
almaz
Almaz Karimov
Contributor
Зареєстрован(а) с: 25.09.2008
Повідомлення: 516
|
Or use user API function: system
http://wiki.oscada.org/HomePageEn/Doc/ProgrammManual#h946-6
to call the script.
Simple shell script:
http://www.jimmy.co.at/weblog/?p=30
Or use sysCall
http://wiki.oscada.org/HomePageEn/Doc/FLibSYS?v=yhj#h899-4
using Special.FLibSYS;
test=sysCall("wakeonlan ..........");
sudo apt-get install wakeonlan
wakeonlan [-h] [-v] [-i IP_address] [-p port] [-f file] [[hardware_address]
[Повідомлення редагувалось 2 раз(ів), останній раз 27.12.2012 в 13:52.]
21 век - век повсеместной автоматизации. Главное - во благо всем людям.
|
|
Повідомлення створено: 28. 03. 2013 [16:21]
|
|
ajinkya
Ajinkya Biradar
Автор теми
Зареєстрован(а) с: 17.12.2012
Повідомлення: 23
|
Hello Sir,
This is a bit late reply since I was a bit out of the project and had some other module to work on.
As you asked to use wake on LAN using "sudo apt-get install wakeonlan".
I was able to do it on terminal and PC is waking up in both sleep/hibernate and shutdown mode.
I tried the same thing on windows platform with this link http://www.depicus.com/wake-on-lan/wake-on-lan-cmd.aspx
And i also have the packet format (observed using wireshark) which is being sent by these software.
And Now I need some help using "syscall" as you suggested.
What I am not getting here is where should I actually write these set of commands.
Thank you very much for your reply.
|
|
Повідомлення створено: 29. 03. 2013 [06:39]
|
|
almaz
Almaz Karimov
Contributor
Зареєстрован(а) с: 25.09.2008
Повідомлення: 516
|
The program is written in JavaLikeCalc:
http://wiki.oscada.org/HomePageEn/Doc/JavaLikeCalc?v=13pw#h867-2
21 век - век повсеместной автоматизации. Главное - во благо всем людям.
|
|
Повідомлення створено: 05. 08. 2013 [14:28]
|
|
ajinkya
Ajinkya Biradar
Автор теми
Зареєстрован(а) с: 17.12.2012
Повідомлення: 23
|
Hello sirs,

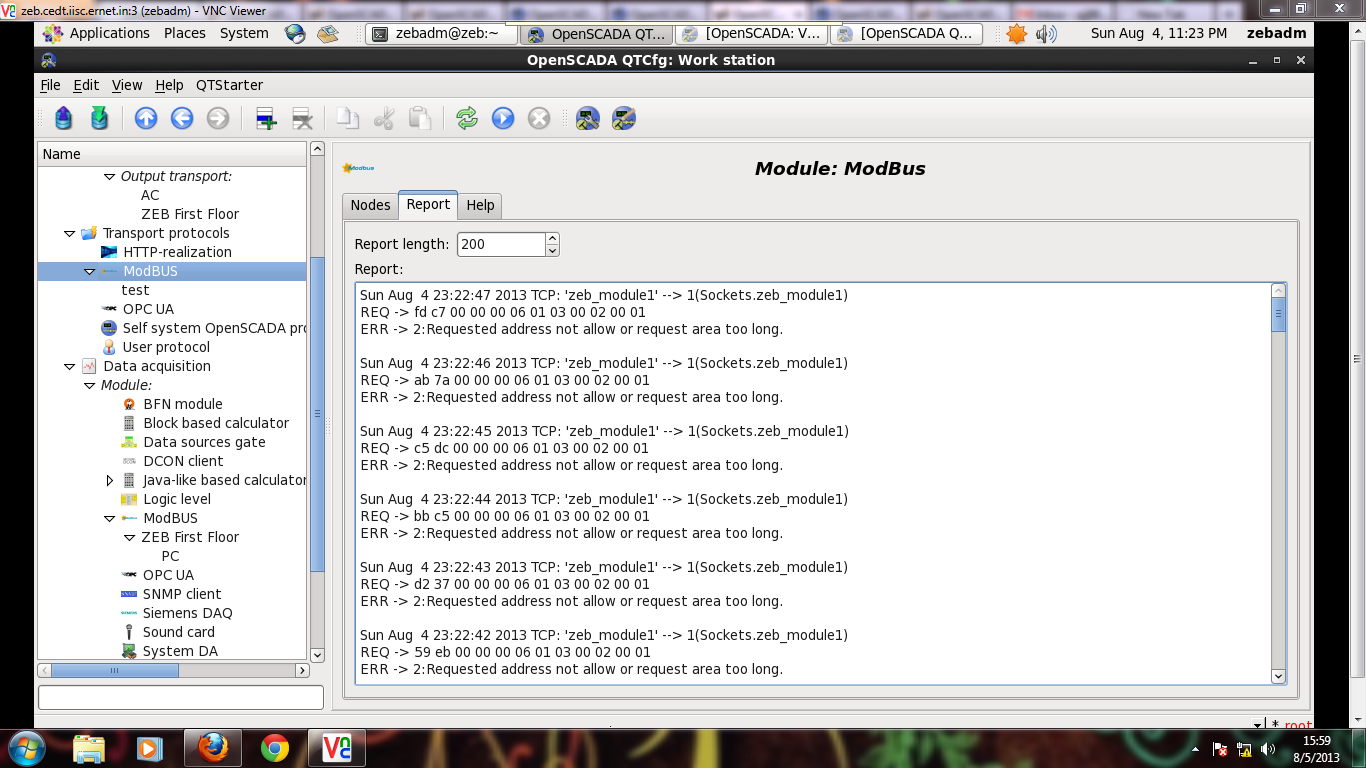

I am getting this kind of response in Modbus-Response tab, when I start the created project in openscada,
--> device error: connect to internet socket error
but and as soon as I start the openscada_AGLKS project I get the error (actually it connects to the socket this time)
--> 2: requested address not allow or request area too long.
again if i close the openscada_AGLKS project, it again says the same thing "device error: connect to internet socket error".
I am sure that I am missing some setting for using MODBUS for my project, but I am not able to locate it.
Kindly Guide on this matter.
+
I have modified a small back-end program for button event handler looking at test modules you provided.....
as mentioned in one your replies in this post --> " Button in GUI and the “enabler” in logical level "
Script--
ev_cur = ev_rez = "";
off=0;
while(true)
{
ev_cur=Special.FLibSYS.strParse(event,0,"\n",off);
if( ev_cur == "" ) break;
if( ev_cur == "ws_BtPress:/com_PwUp1") com_PwUp1_color=(com_PwUp1_color=="red")?"green":"red" ;
if( ev_cur == "ws_BtPress:/com_PwUp1") st_PC_ON1_text=(st_PC_ON1_text=="OFF")?"ON":"OFF" ;
else ev_rez += (ev_cur+"\n");
}
event=ev_rez;
I want to ask, where you would advise to write this script
1. in widgets -> created liberary name-> widget -> properties
2. or in projects -> project name -> root page(SO) -> memos-> added liberary element -> properties
and as replied by almaz sir, if at all I have to send a packet then for that the script should be written in
Data acquisition ->module->JavaLikeCalc->controller
Right??
Вкладений файл
device error.png (Тип файлу: image/png, Розмір: 299.5 кілобайтів) — 2324 завантажень
|
|
Повідомлення створено: 05. 08. 2013 [19:32]
|
|
roman
Roman Savochenko
Moderator Contributor Developer
Зареєстрован(а) с: 12.12.2007
Повідомлення: 3750
|
"ajinkya" wrote:
I am getting this kind of response in Modbus-Response tab, when I start the created project in openscada,
--> device error: connect to internet socket error
You do not send any request's data.
"ajinkya" wrote:
but and as soon as I start the openscada_AGLKS project I get the error (actually it connects to the socket this time)
--> 2: requested address not allow or request area too long.
Here you have incorrect data area request, concrete your device tell this has not register "2"
"ajinkya" wrote:
Kindly Guide on this matter.
See to where you send the request and what you send. For examples see to work demo-configuration.
"ajinkya" wrote:
I want to ask, where you would advise to write this script
1. in widgets -> created liberary name-> widget -> properties
2. or in projects -> project name -> root page(SO) -> memos-> added liberary element -> properties
Into Projects tree you deal with the interface's pages but into libraries tree with widgets also then you must write the script into corresponding place. But better way all scripts write only into libraries.
"ajinkya" wrote:
and as replied by almaz sir, if at all I have to send a packet then for that the script should be written in
Data acquisition ->module->JavaLikeCalc->controller
Right??
No. Into Projects and Libraries you should write interface's code and into like Data acquisition ->module->JavaLikeCalc->controller write communication code for prevent interface freeze on the communication acts.
Learn, learn and learn better than work, work and work.
|
|
Повідомлення створено: 16. 11. 2013 [14:59]
|
|
ajinkya
Ajinkya Biradar
Автор теми
Зареєстрован(а) с: 17.12.2012
Повідомлення: 23
|
Hello Sir,
I made some mistakes in linking that is why I am not able to get the back-end working.
Here is what I understood looking at the demo project AGLKS about the linking the different modules.
Linking is done in 2 parts.
say for example
Part I:
In "Java-like based calculator -> controller" We write the Attribute configuration list, in form "<io>:<aid>:<anm>"
which are the parameters from the attribute list which are to be controlled/monitored.
like
'st_open' (from 'KS102' from AGLKS->Root Page(SO)->KM101->Mnemo->KM101)
is listed in the Attribute configuration list in Block based calculator->Mainstation->parameter->KW2 in Block's IOs field.
then in 'links' tab from properties of Mnemo item 'KM101' from AGLKS project we link it to the Block based calculator same
parameter as ----> prm:/BlockCalc/KM101/KW102/st_open(+).
Part II:
Then in "Transport protocol-> MODBUS -> Data" we add the same parameter and then in the same window in 'Links' tab
it is linked with the Block calculator as "BlockCalc.Anast1to2node.KW2.st_open(+)"
I am kind of confused about this linking part, can you guide me further.
which one out of Block based calculator and Java-like based calculator should i use.
I have got a system function call to make on button press as mentioned below (which is as per the previous replies in this thread)
-----------------------------------------------------------------
using Special.FLibSYS;
test = sysCall("etherwake -i eth0 <MAC address>");
or
test = net rpc shutdown -l 10.114.12.50 -f -U domain\\username password
-----------------------------------------------------------------
Any help to get me going will be appreciated ...
Thanks in advance.
|
|
Повідомлення створено: 17. 11. 2013 [10:43]
|
|
roman
Roman Savochenko
Moderator Contributor Developer
Зареєстрован(а) с: 12.12.2007
Повідомлення: 3750
|
"ajinkya" wrote:
I am kind of confused about this linking part, can you guide me further.
which one out of Block based calculator and Java-like based calculator should i use.
Sure link from Transport you can set to only source elsewhere you need create second IO and that will second source.
"ajinkya" wrote:
I have got a system function call to make on button press as mentioned below (which is as per the previous replies in this thread)
-----------------------------------------------------------------
using Special.FLibSYS;
test = sysCall("etherwake -i eth0 <MAC address>");
or
test = net rpc shutdown -l 10.114.12.50 -f -U domain\\username password
-----------------------------------------------------------------
This is different commands and what do you really want to do?
Learn, learn and learn better than work, work and work.
|
|
Повідомлення створено: 18. 11. 2013 [08:52]
|
|
ajinkya
Ajinkya Biradar
Автор теми
Зареєстрован(а) с: 17.12.2012
Повідомлення: 23
|
Hello Sir,

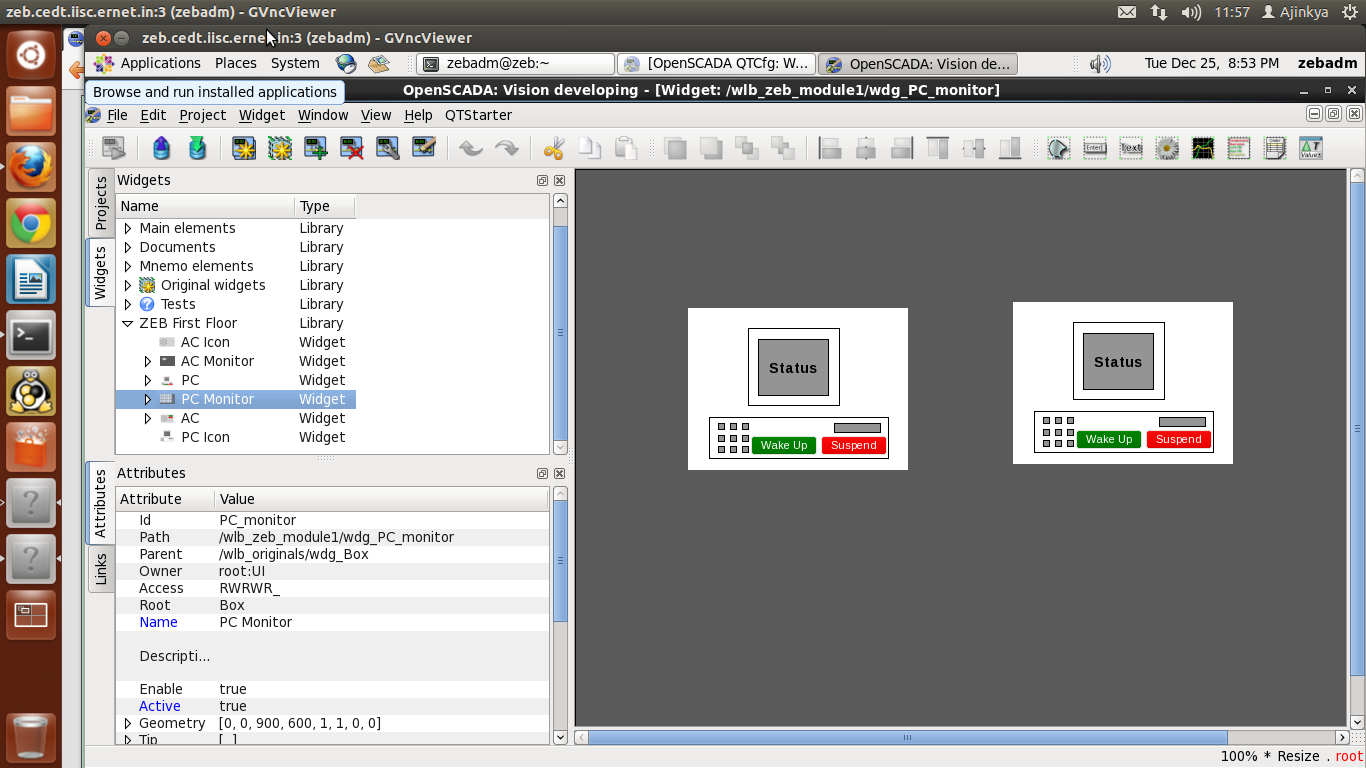

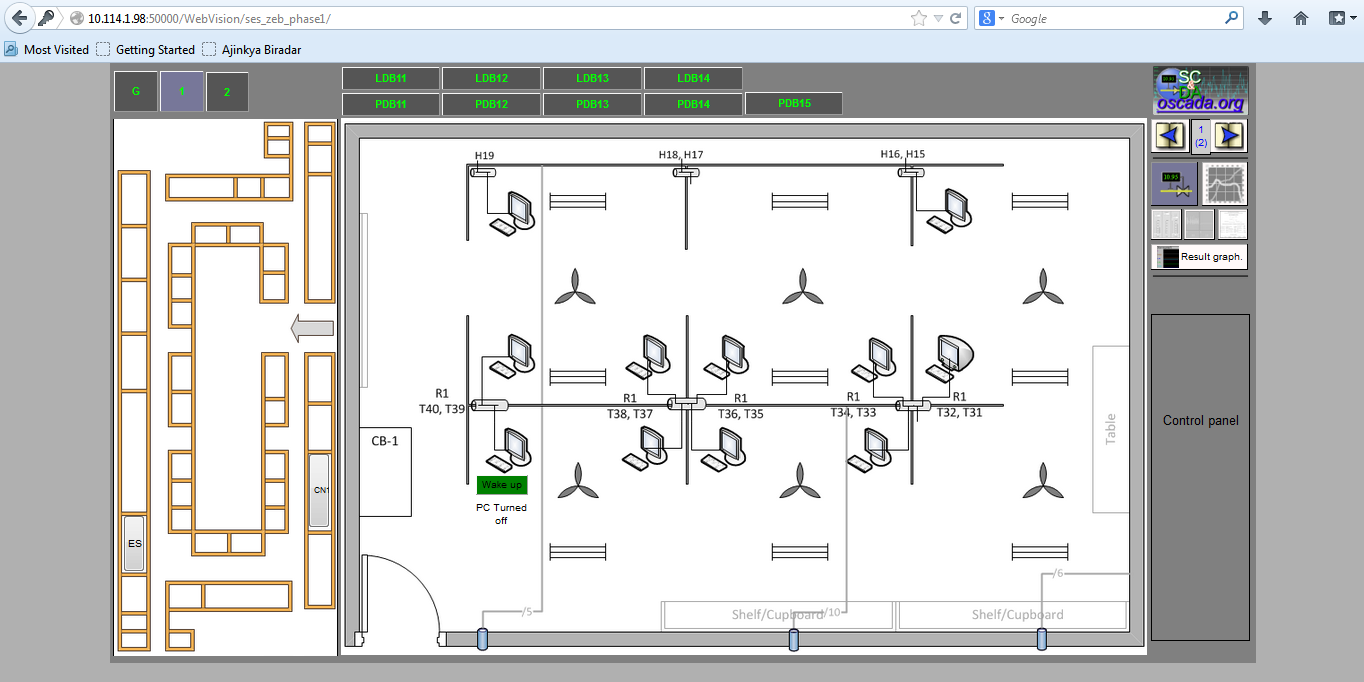

As i mentioned in previous thread, I have my customized front-end ready(with your help :-) ), it can be seen in attachment.
In the attached image there is one button named "wake up". So on that button press event I want to call the system function
ether wake -->> sysCall("etherwake -i eth0 <MAC address>"); <<--
As of now it only seen working in front end , like it changes its color, text on the button to "Turn off" and the status message too, but nothing is written to execute the actual command like "etherwake -----" or "net rpc shutdown --------"
So I want your guidance on this.
Thanks in advance.
----------------------------------------------------------------------------------------------------------------------------------------
I have already tried and tested both the commands
1. etherwake -i eth0 <MAC address>
2. net rpc shutdown -l 10.114.12.50 -f -U domain\\username%password
they found to be working from my terminal and I am able to wake up any PC irrespective of OS and
also able to shutdown any windows pc using 2nd command.
----------------------------------------------------------------------------------------------------------------------------------------
Вкладений файл
|
