Topic with no new replies

VCAEngine: Element 'Main' is missing!


Author Message
Written on: 12. 02. 2019 [04:51]
rangsarit
Rangsarit Vanijjirattikhan
Topic creator
registered since: 11.02.2019
Posts: 4
Hello,

I'm not sure what happen. I was working on the Quick Start guide at "5 Formation of the visual representation". I did create "Graphic 2" and was trying to "enable" and access "Links" tab. However, at the beginning, I didn't see the tree of element 'el1' ... 'el8' on "Links" tab. Then, I restarted my Ubuntu machine. When I started Openscada program again, it seems that the icons in the "Projects" pane looks strange and it showed "VCAEngine: Element 'Main' is missing!" when I clicked enable. What did I do wrong? Could you please help?

Thank you very much,
Rangsarit

[This article was edited 1 times, at last 12.02.2019 at 04:52.]

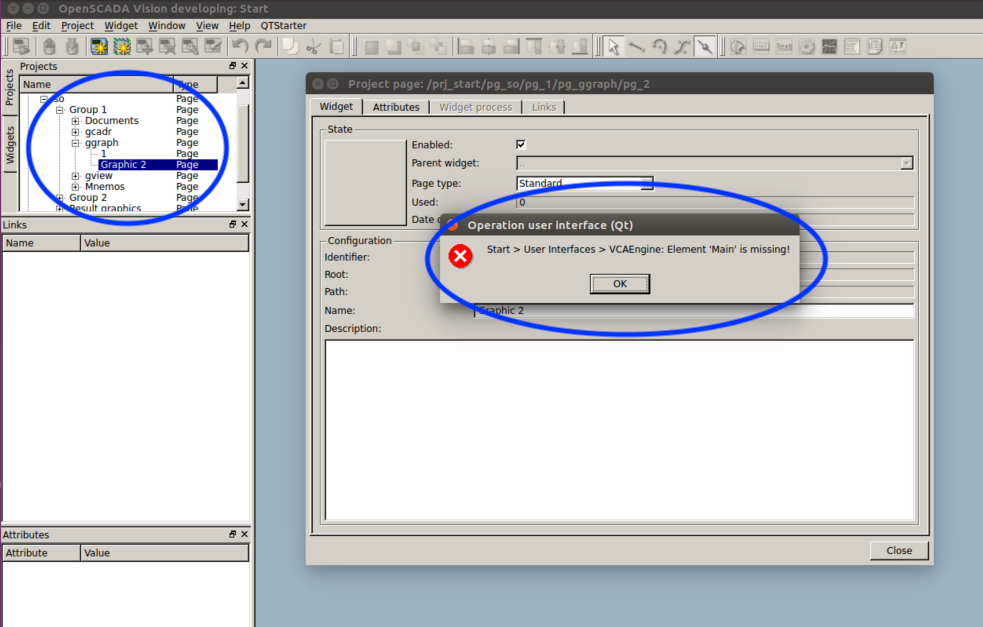

Attachment

Screen Shot 2562-02-11 at 16.15.19.png (File type: image/png, Size: 189 kilobytes) — 0 downloads
Screen Shot 2562-02-11 at 16.15.19.png (File type: image/png, Size: 189 kilobytes) — 1 downloads
Written on: 12. 02. 2019 [08:21]
roman
Roman Savochenko
Moderator
Contributor
Developer
registered since: 12.12.2007
Posts: 3503
Connection of the OpenSCADA libraries, and "vcaBase.db" concrete, was not saved or those libraries are not presented in whole.

See to the logs and read the HowTo Debug!

Learn, learn and learn better than work, work and work.
Written on: 13. 02. 2019 [05:19]
rangsarit
Rangsarit Vanijjirattikhan
Topic creator
registered since: 11.02.2019
Posts: 4

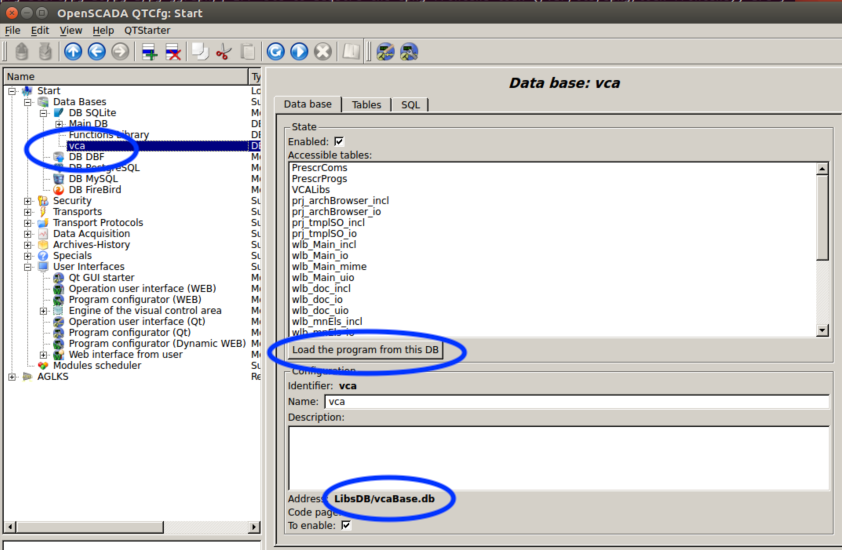

I added LibsDB/vcaBase.db into "DB SQLite" and click "Load the program from this DB". Now, I can enable "Graphic 2" and "el1...el8" appear.

Thank you very much,
Rangsarit
Attachment

Screen Shot 2562-02-13 at 09.20.20.png (File type: image/png, Size: 205.11 kilobytes) — 0 downloads
