[BugWrong] It is only displayed at most 2001 lines by the "Value archive" module of the subsystem of "Archvies-History" in OpenSCADA0.9.1-3LTS


Author Message
Written on: 08. 07. 2020 [14:12]
lygoflying
Lee younger
Topic creator
registered since: 09.05.2019
Posts: 4

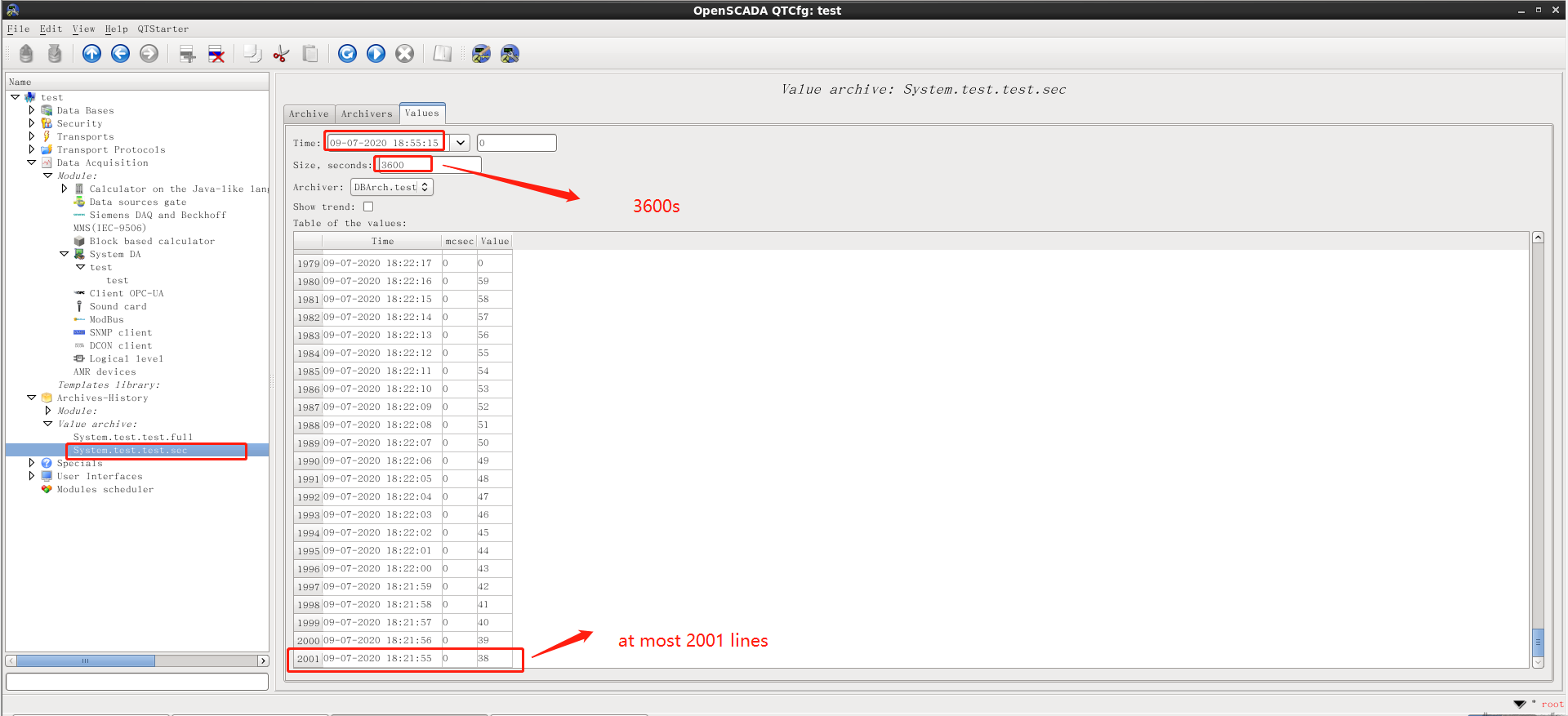

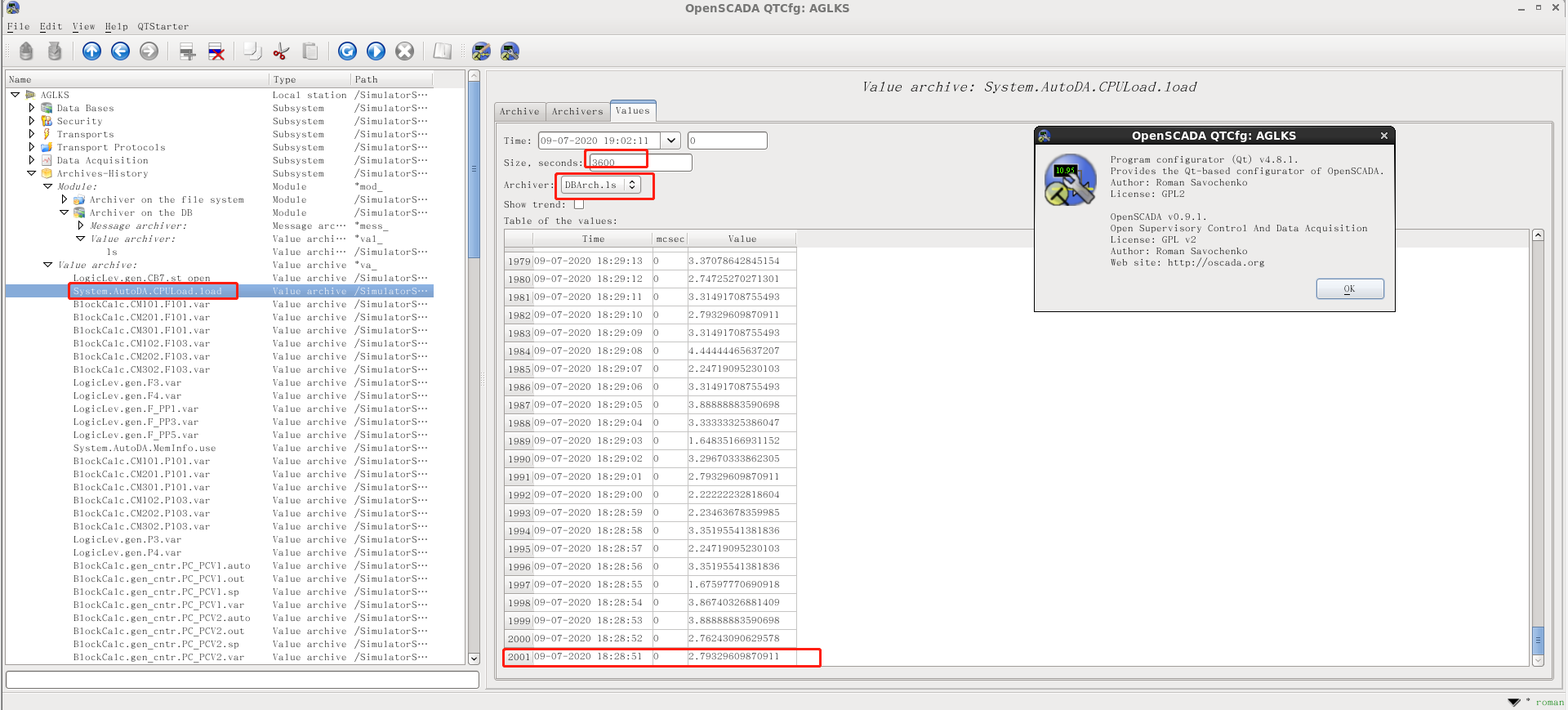

It is only displayed at most 2001 lines by the "Value archive" module of the "Archvies-History" subsystem itthe vesion of OpenSCADA0.9.1-3LTS.There are more than 2001 rows in the database.
The os of my computor is CentOS6_x64.
How to solve the problem or avoid the problem?

[This article was edited 1 times, at last 08.07.2020 at 14:17.]
Attachment

Written on: 08. 07. 2020 [15:16]
roman
Roman Savochenko
Moderator
Contributor
Developer
registered since: 12.12.2007
Posts: 3631
"lygoflying" wrote:

It is only displayed at most 2001 lines by the "Value archive" module of the "Archvies-History" subsystem itthe vesion of OpenSCADA0.9.1-3LTS.There are more than 2001 rows in the database.
The os of my computor is CentOS6_x64.
How to solve the problem or avoid the problem?

That is not a bug but just a limit of diagnostic viewing the value archives in 2000 points!

That is not principal essence and it is not operative interface and even the operative interfaces has own limits, which configurable ones mostly.

Learn, learn and learn better than work, work and work.
Written on: 08. 07. 2020 [17:09]
lygoflying
Lee younger
Topic creator
registered since: 09.05.2019
Posts: 4
"roman" wrote:

That is not a bug but just a limit of diagnostic viewing the value archives in 2000 points!

That is not principal essence and it is not operative interface and even the operative interfaces has own limits, which configurable ones mostly.


Thank you very much for your reply!

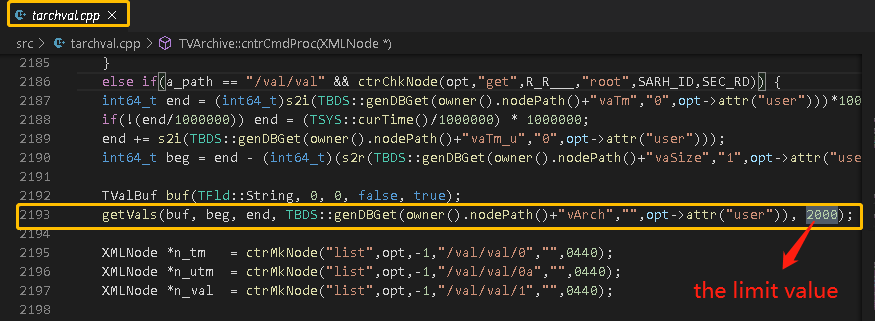

From the source code, I found the limit value.
I think it's better to increase the limit value, e.g 3600*24.
It's just a suggestion.

[This article was edited 1 times, at last 08.07.2020 at 17:12.]
Attachment

limit _value.jpg (File type: image/jpeg, Size: 22.76 kilobytes) — 31 downloads
