Hello i want to create a GUI of my local technological process so I need to add visual components like
pipelines, cranes, valves, etc.
I know that in OpenScada there are widgets ready to use, and I want to use those on my GUI, but I need to know how can I resize the pre-ready widgets to fit a size optimum for my technological process screen, see the attached images as example.

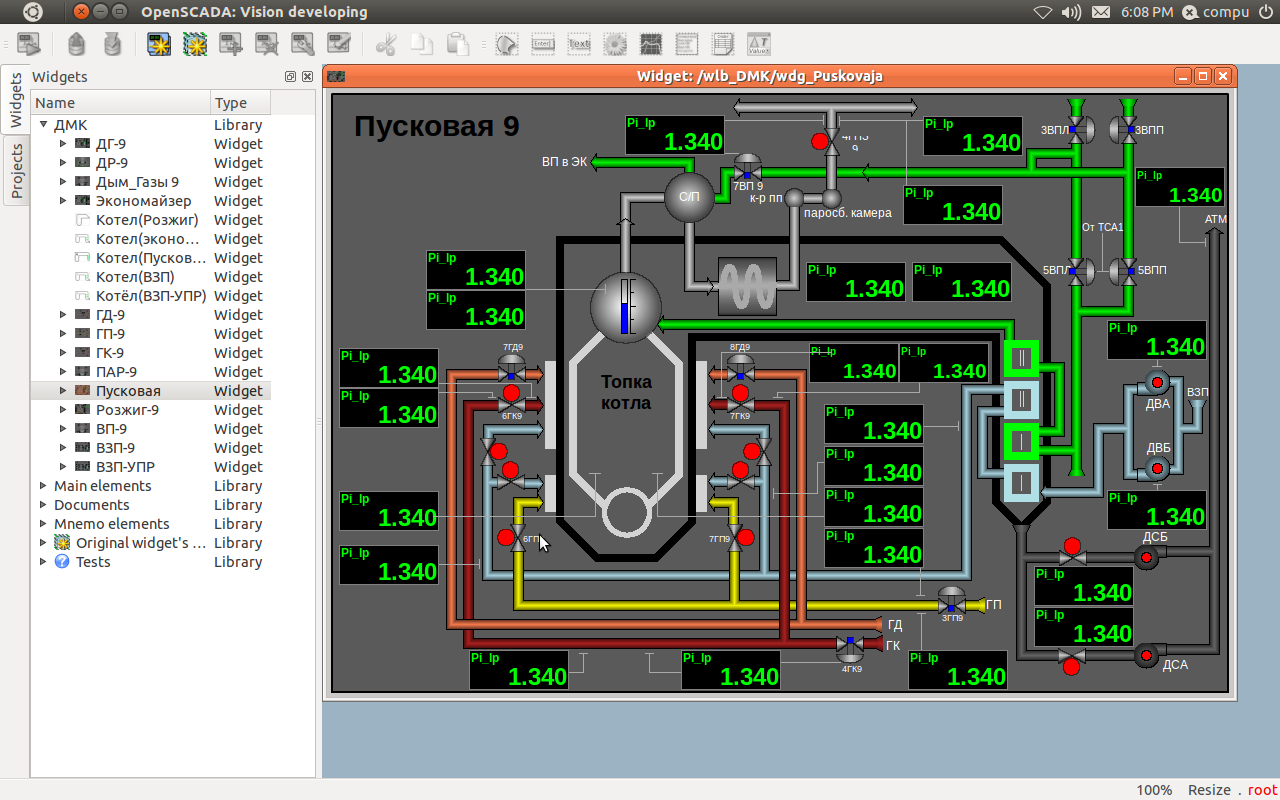

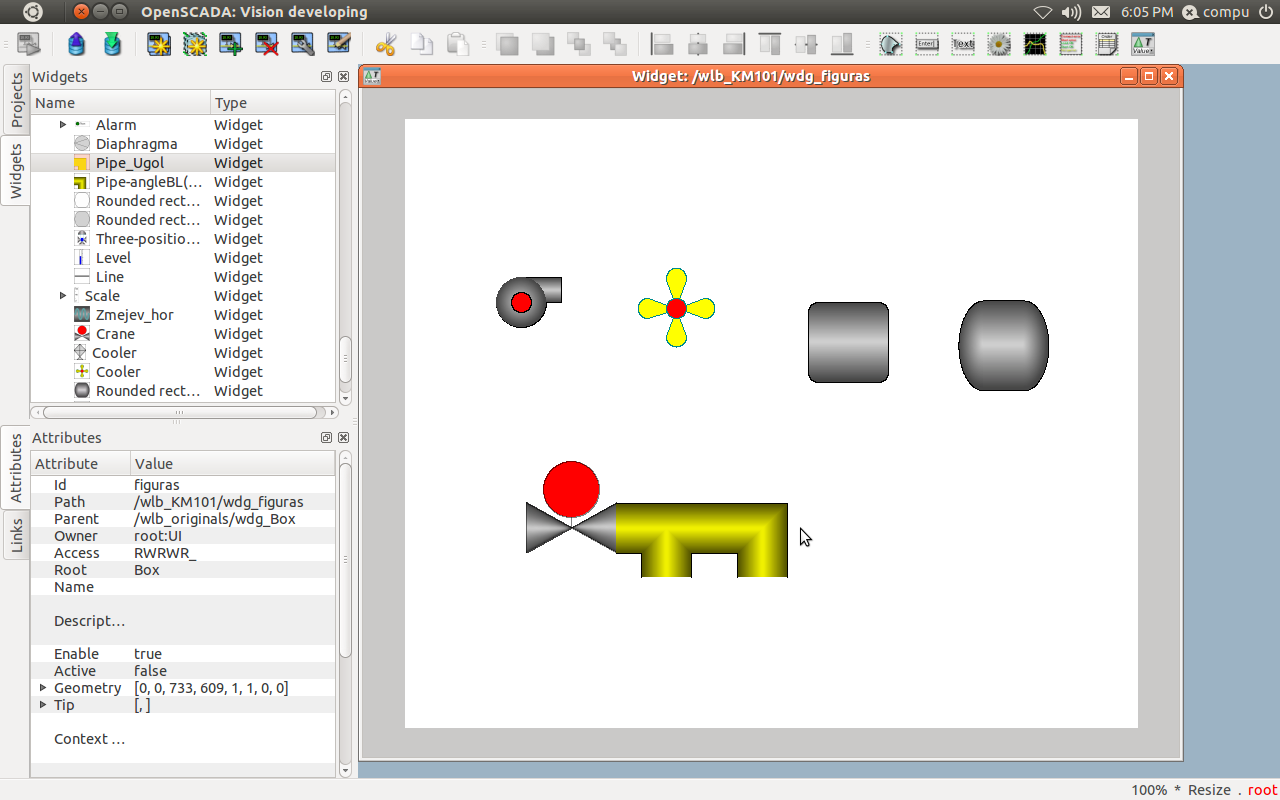

For example how can I reduce the size of the pipe, valves ( picture 1 ) to looks like the pipes, valves of the ( picture 2 ).
Thanks a lot.
Attachment
Picture A.png (File type: image/png, Size: 138.32 kilobytes) — 2643 downloads
Picture B.png (File type: image/png, Size: 193.02 kilobytes) — 2715 downloads
|
|
Written on: 22. 08. 2012 [09:22]
|
|
roman
Roman Savochenko
Moderator Contributor Developer
registered since: 12.12.2007
Posts: 3747
|
"OPMOTOR" wrote:
For example how can I reduce the size of the pipe, valves ( picture 1 ) to looks like the pipes, valves of the ( picture 2 ).
Taken from QuickStart manual:
The added elements can be subsequently positioned as needed by simply selecting and dragging them by the mouse.
Also you can change its size. Simple size changing will only resize the container widget geometry, what often needlessly.
For all widget's content geometry change it need to scale, what making by key "Ctrl" holding at the widget geometry change or
by toggle state "Resize" into statusline to "Scale.
Learn, learn and learn better than work, work and work.
|
|
Written on: 23. 08. 2012 [08:32]
|
|
OPMOTOR
OP MOTORS
Topic creator
registered since: 21.01.2011
Posts: 13
|
Ok thank you so much, just a little detail.
when I download the file QuickStart from
ftp://ftp.oscada.org/OpenSCADA/0.7.2/doc/en/QuickStart.pdf
The information that you lead about the resize is not there!.. See page 41 / 71
Please check this detail. or update the QuickStart available file for download.
See you friends!!.
|
|
Written on: 23. 08. 2012 [09:33]
|
|
roman
Roman Savochenko
Moderator Contributor Developer
registered since: 12.12.2007
Posts: 3747
|
Version 0.7.2 have not supported already.
See to online http://wiki.oscada.org/HomePageEn/Doc/QuickStart , where always last by primacy.
