| Author |
Message |
|
Written on: 19. 11. 2009 [23:09]
|
|
Rosnel
Rosnel M
Topic creator
registered since: 19.11.2009
Posts: 2
|
Hello, i'm Rosnel Martínez from Venezuela.
I'm trying to test the Modbus protocol, and when I connect a device and configure the "socket" for input and output module "trasports" failed to establish communication. I do this and then run a "Data Acquisition" module "modbus" using the TCP / IP using the "socket" previously configured.
The error says "Operation in progress" and not allow the connection or establñecer the test of "Data Acquisition".

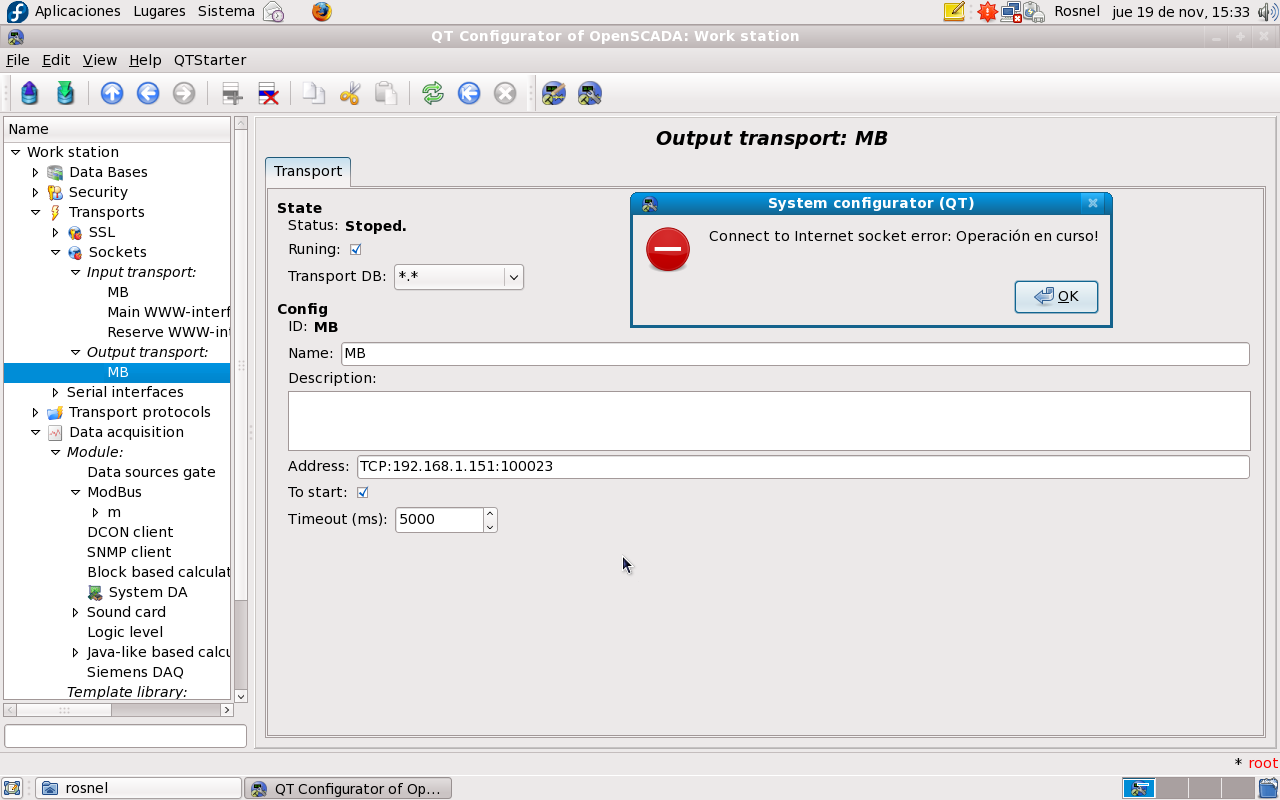

Annex a picture of the error and socket configuration.
Can you help me?
Attachment
|
|
Written on: 20. 11. 2009 [09:00]
|
|
Aleksey
Aleksey Popkov
Contributor
registered since: 31.07.2008
Posts: 326
|
Maximum count of port 65535.
100023 - ???
|
|
Written on: 20. 11. 2009 [14:31]
|
|
kuzulis
Денис Шиенков
registered since: 10.07.2009
Posts: 128
|
2 Rosnel,
see http://en.wikipedia.org/wiki/List_of_TCP_and_UDP_port_numbers
set default port number is 502 (for Modbus TCP/UDP)
|
|
Written on: 20. 11. 2009 [14:44]
|
|
Rosnel
Rosnel M
Topic creator
registered since: 19.11.2009
Posts: 2
|
Aleksey wrote:
Maximum count of port 65535.
100023 - ???
Thanks for the quick response.
you're right, I'm wrong in writing.

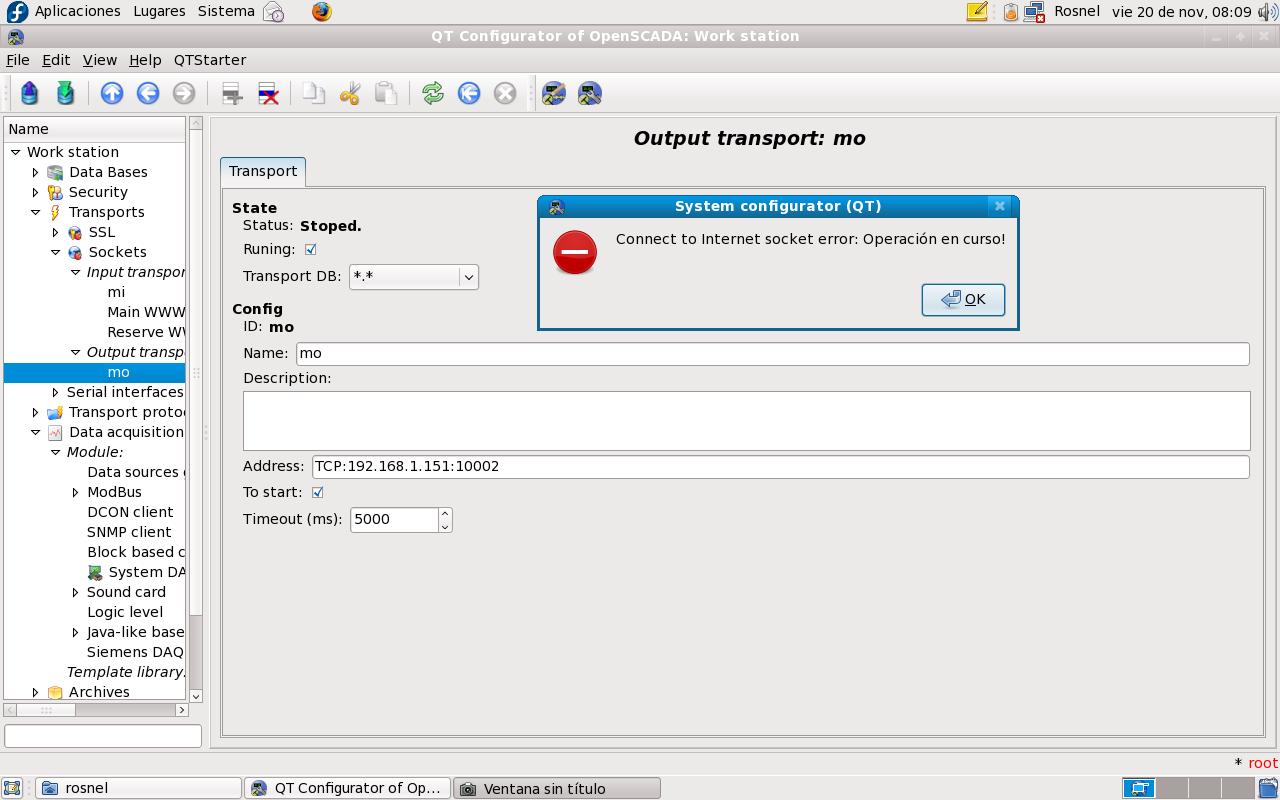

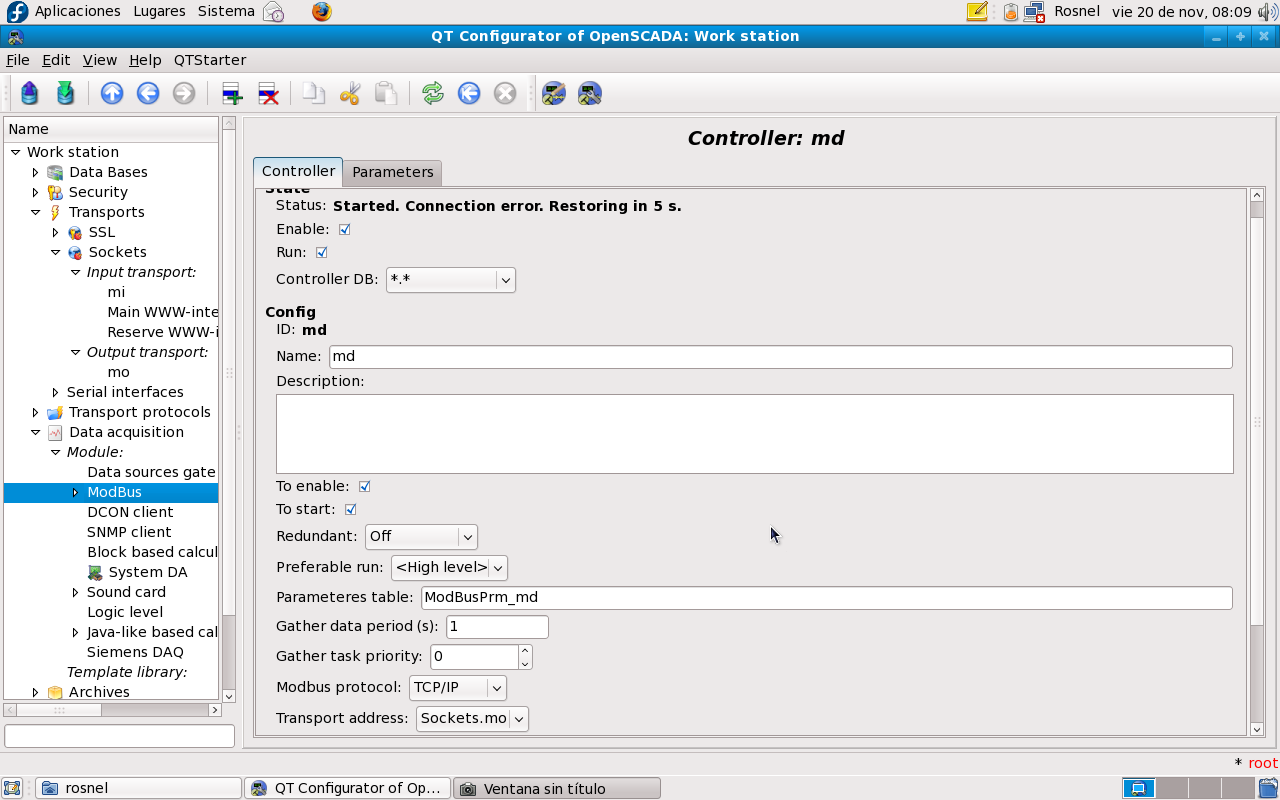

Testing with the 10,002 port which is open and the error still persists. Annex image error and the Data Acquisition module
And I'm sure that the device supports Modbus because the test is to make the comparison with LabView for Data Acquisition
Attachment
|
|
Written on: 21. 01. 2011 [11:56]
|
|
jsantu
José Santurio
registered since: 20.01.2011
Posts: 3
|
Hi, I have the same problem, I need connect my ICP-CON ET-7067 with openSCADA through ethernet, but I couldn't. Do you have any solution for this mistake?
Thanks
|
|
Written on: 21. 01. 2011 [12:39]
|
|
Maxim
Maxim Lisenko
Contributor
registered since: 18.08.2008
Posts: 141
|
Hi. Your question is very poor, so it is impossible to understand your problem... Try to explain it more detailed and with screen shots may be.
|
|
Written on: 21. 01. 2011 [14:10]
|
|
jsantu
José Santurio
registered since: 20.01.2011
Posts: 3
|
Thanks for you fast answer!
First, I need know about the ICP-CON ET-7067. This interface is supported for openSCADA?
I have openSCADA version 0.7.0
I'm working with linux fedora.
|
|
Written on: 21. 01. 2011 [14:31]
|
|
Maxim
Maxim Lisenko
Contributor
registered since: 18.08.2008
Posts: 141
|
In the documentation to this device the supports of ModBus is declared, so it can be connected to OpenSCADA. For more information read http://wiki.oscada.org/HomePageEn/Doc/QuickStart and http://wiki.oscada.org/HomePageEn/Doc/ModBus .
|
|
Written on: 31. 01. 2011 [17:09]
|
|
jsantu
José Santurio
registered since: 20.01.2011
Posts: 3
|
I made the connection, thanks.
|
