Written on: 24. 02. 2013 [23:51]
|
|
OPMOTOR
OP MOTORS
Topic creator
registered since: 21.01.2011
Posts: 13
|
Hi I have updated my system from ubuntu 11.10 to 12.04 it means that also I have changed my Openscada version from 0.7.1 to 0.8.0.5, at the same time I install the aglks and boiler models.

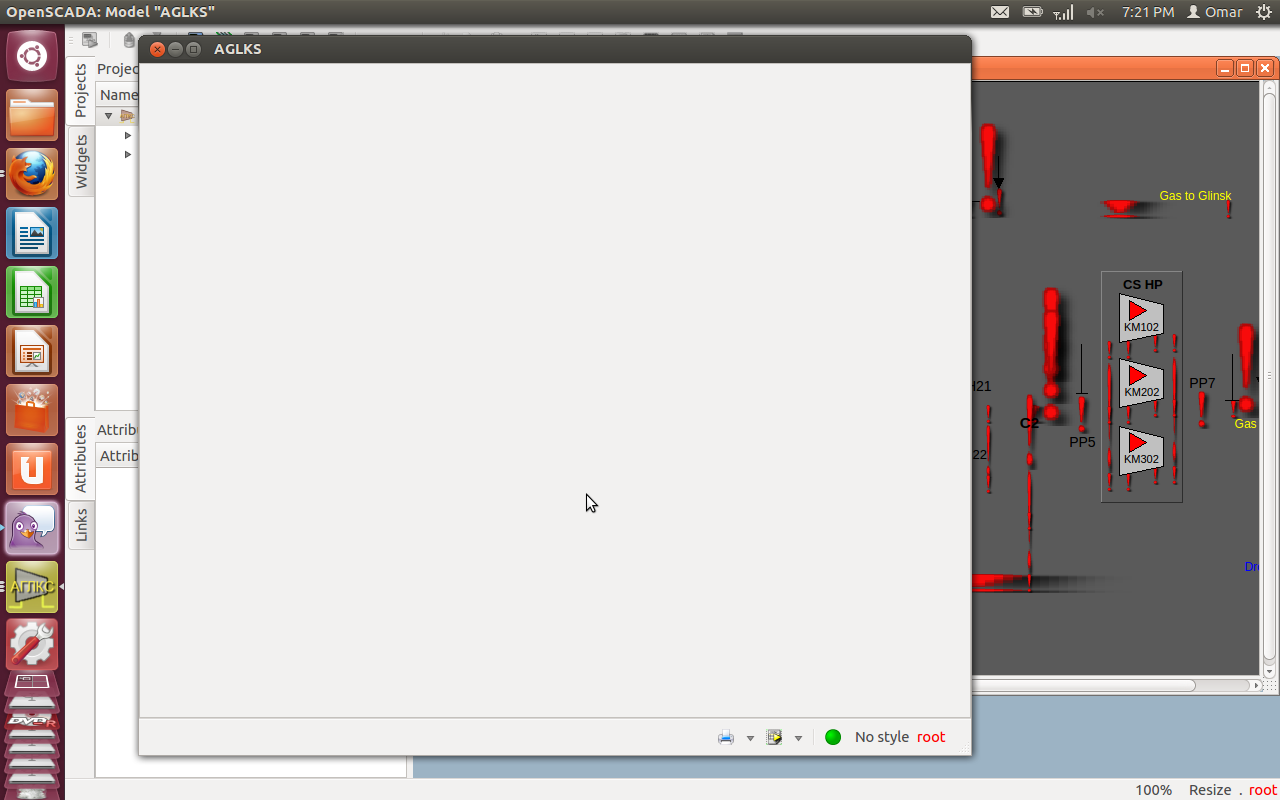

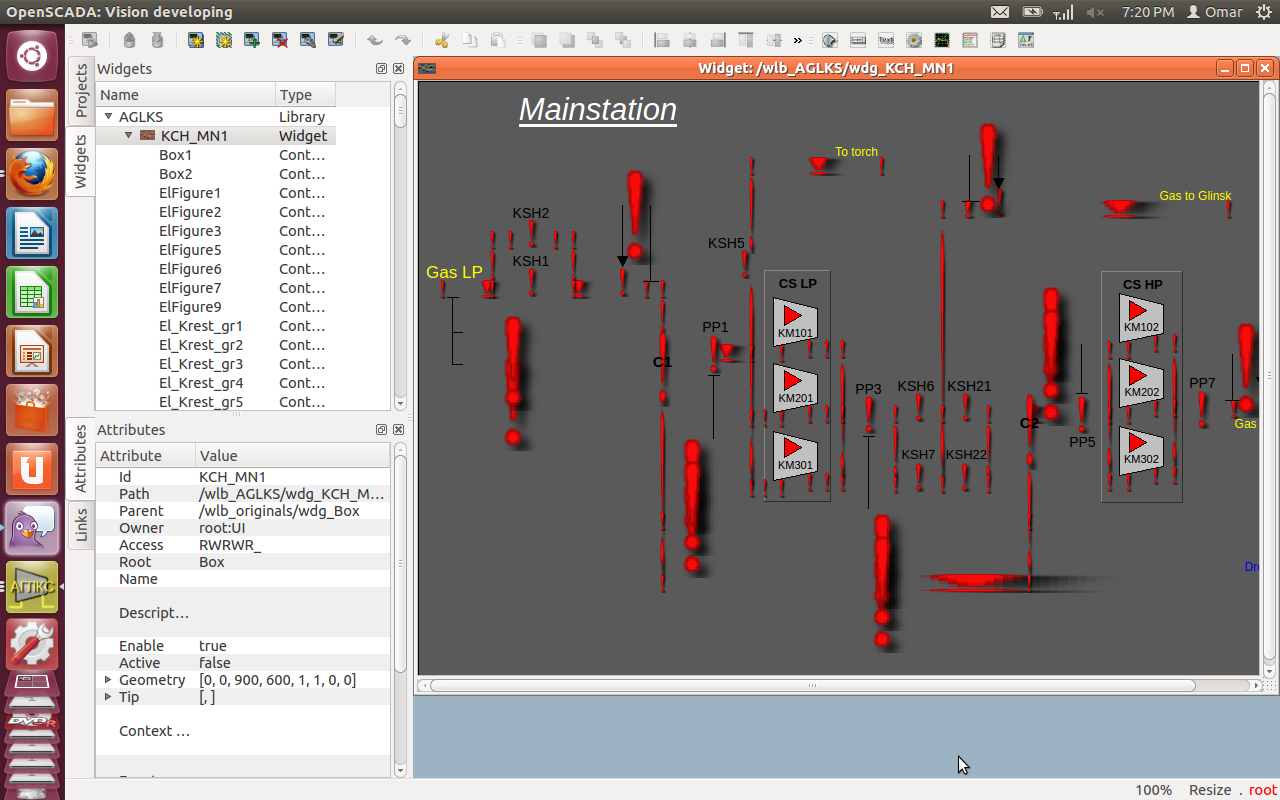

My problem is that when I try to run the aglks and boiler process the screen do not show the controls and visual components that usually shows, ( see images ).

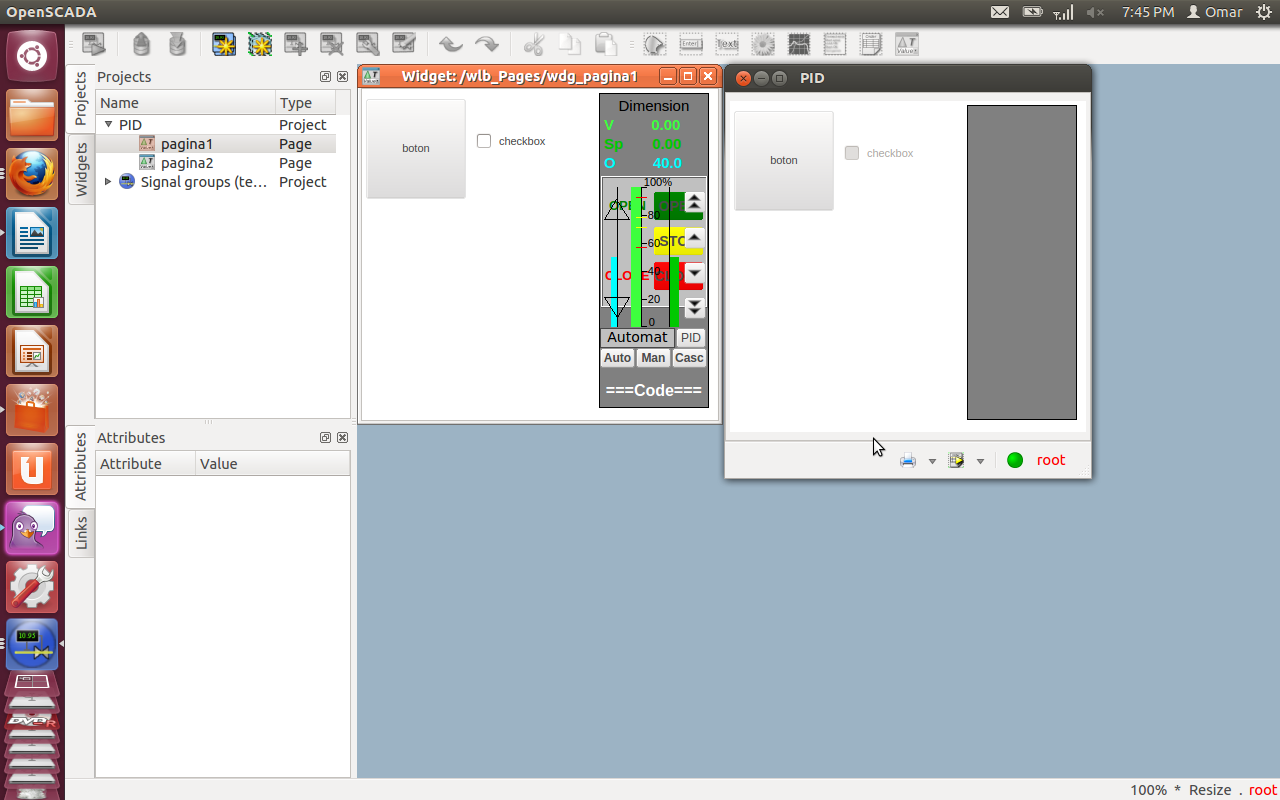

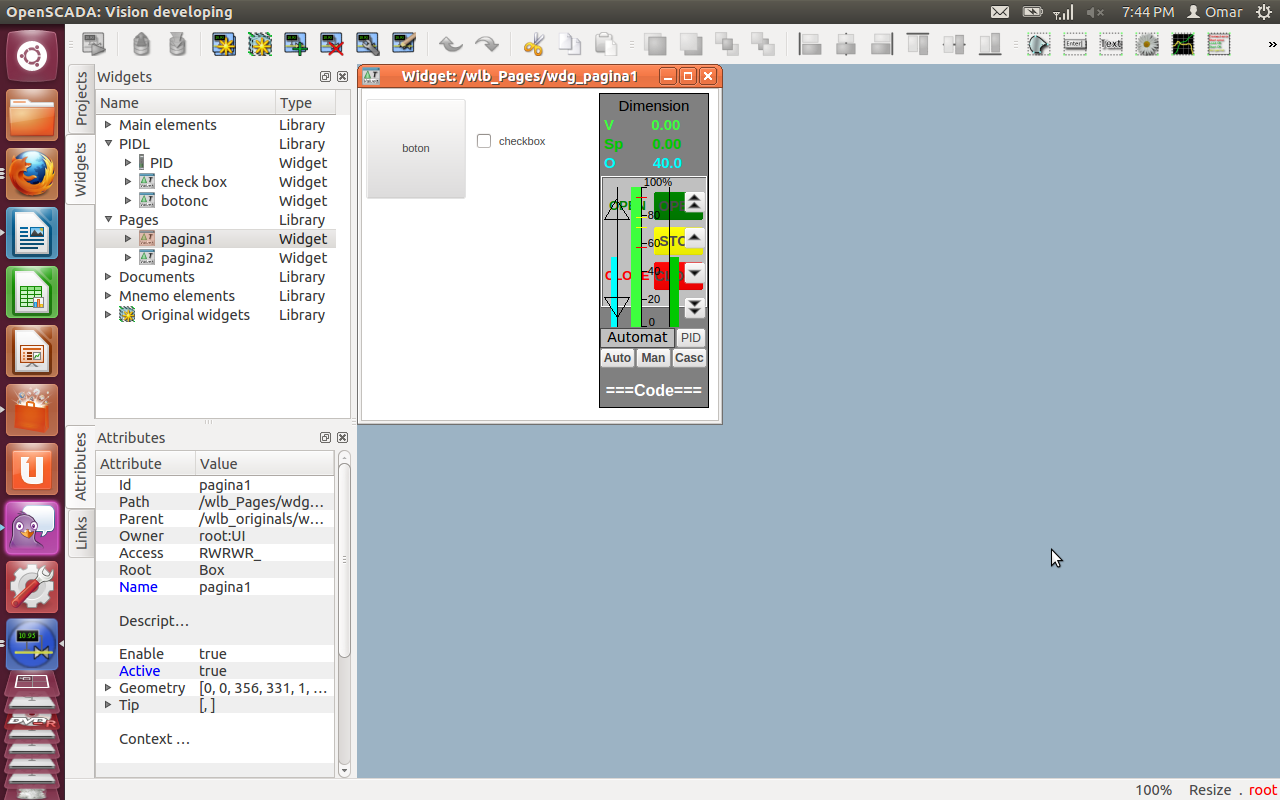

Also in the works station when I add a common pid controller and after try to view it in the project execution can't see the buttons of the controller ( see images ), any idea, where is my mistake, thanks a lot for the support.

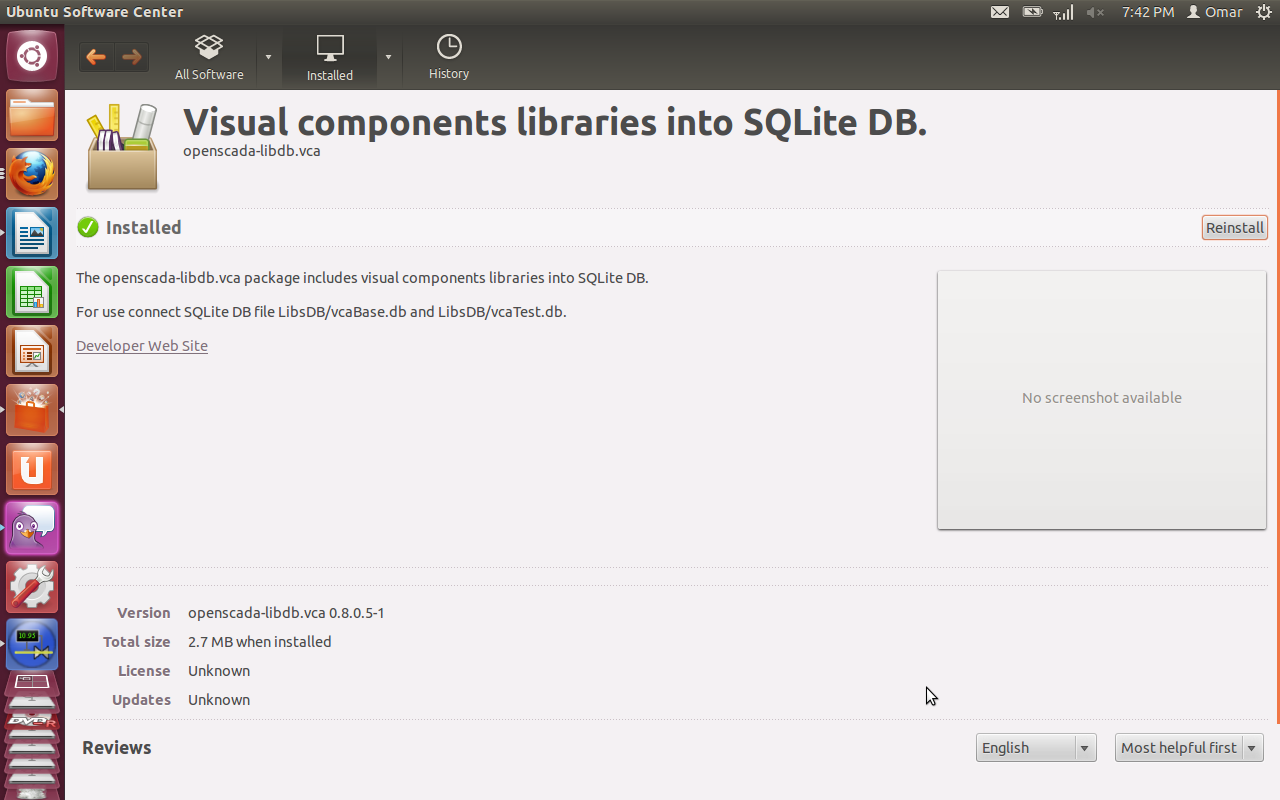

PD: I have also installed the VCA library.. ( see images ).
[This article was edited 2 times, at last 24.02.2013 at 23:53.]
Attachment
|
|
Written on: 25. 02. 2013 [08:32]
|
|
roman
Roman Savochenko
Moderator Contributor Developer
registered since: 12.12.2007
Posts: 3750
|
"OPMOTOR" wrote:
Also in the works station when I add a common pid controller and after try to view it in the project execution can't see the buttons of the controller ( see images ), any idea, where is my mistake, thanks a lot for the support.
I have not like problems also on Ubuntu 11.10 and 12.04. And version 0.8.0.5 clean tested into LiveCD/USB.
Try remove or save somewhere directory ~/.openscada and next start AGLKS or Boiler model. Also place here errors into console or OpenSCADA system messages from here: http://wiki.oscada.org/Doc/OpisanieProgrammy/part4/files?get=subsys_arch_mess.png
P.S. Generically VCADB structure into 0.7.0 and 0.8.0 some incompatible.
Learn, learn and learn better than work, work and work.
|
|
Written on: 25. 02. 2013 [08:35]
|
|
almaz
Almaz Karimov
Contributor
registered since: 25.09.2008
Posts: 516
|
Try to completely remove OpenSCADA deb packages by using the Synaptic. Orsudo apt-get remove openscada
And reinstall it.
For 32-bit systems
sudo dpkg -i openscada_0.8.0.5-1_i386.deb openscada-libdb.main_0.8.0.5-1_all.deb openscada-libdb.vca_0.8.0.5-1_all.deb openscada-model.aglks_0.8.0.5-1_all.deb openscada-model.boiler_0.8.0.5-1_all.deb openscada-doc.en_0.8.0.5-1_all.deb openscada-doc.ru_0.8.0.5-1_all.deb
For 64-bit systems
sudo dpkg -i openscada_0.8.0.5-1_amd64.deb openscada-libdb.main_0.8.0.5-1_all.deb openscada-libdb.vca_0.8.0.5-1_all.deb openscada-model.aglks_0.8.0.5-1_all.deb openscada-model.boiler_0.8.0.5-1_all.deb openscada-doc.en_0.8.0.5-1_all.deb openscada-doc.ru_0.8.0.5-1_all.deb
All packages available
http://www.oscada.org/oscadaArch/0.8.0/Ubuntu/12.04/
[This article was edited 1 times, at last 25.02.2013 at 09:14.]
21 век - век повсеместной автоматизации. Главное - во благо всем людям.
|
|
Written on: 25. 02. 2013 [23:50]
|
|
OPMOTOR
OP MOTORS
Topic creator
registered since: 21.01.2011
Posts: 13
|

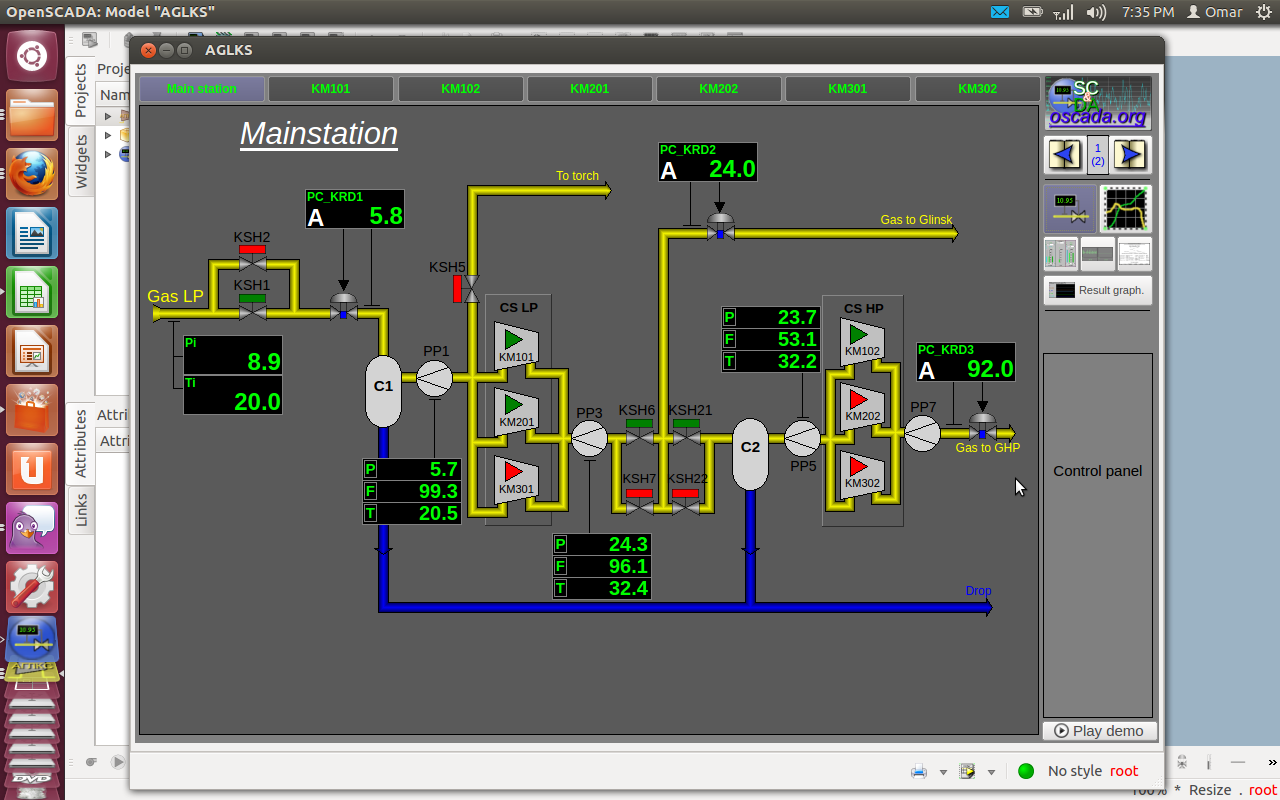

Ok, I follow the instruction of Roman and the result was successful, after run the AGLKS and the Boiler ( both works right after delete the directory ~/.openscada.)
Then i close the models, and run the Openscada workstation, after that I load the lib VCA located in the directory /.openscada/LibsDB
I will to do more tests and report any abnormal behavior.
Attachment
|
